Overlap

When setting up the mission, pay careful attention to the distance between tracks, the sidelap, and the distance between successive captures, the frontlap. Both of these should be configured to yield a 75% overlap.

By 75% overlap, we mean that as the aircraft travels along a flight track, each following image overlaps the previous by 75%, both in the forward direction as well as the side direction on the parallel track.

Flight Planners and Camera Parameters

Use your system’s mission planning utility to set up the flight plan at 75% overlap. It is essential that the mission planner you use supports your camera's specific parameters. While the specific method will vary depending on your system, be sure you select RedEdge-M/MX, RedEdge, or Altum as the camera type, and make sure to configure the camera's overlap mode as the trigger.

If using Atlas Flight, there is no need to set any parameters as it is already configured for both cameras. Otherwise, camera parameters are available on our knowledge base for RedEdge-M/MX, RedEdge and Altum. The parameters are set up for a camera that is positioned horizontally (landscape), so if the camera is positioned vertically (portrait) in your integration, you will need to reverse the width and height specifications.

You can check that your mission planner has the correct parameters for your sensor by comparing it to the example flight plan below, which is set up for an altitude of 122 meters and 75% overlap. If you create the same flight plan, the front-lap spacing should be 20 meters and the track spacing should be 26.6 meters:

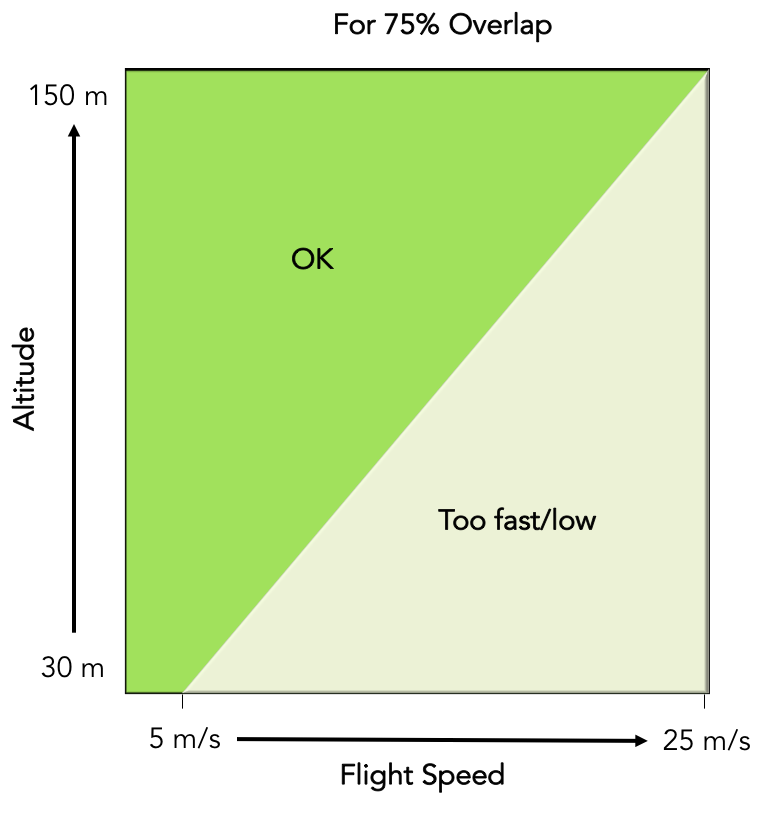

Speed and Altitude

As you create a flight mission, if the field to be mapped requires more than one flight to fully cover, the flights should overlap by at least one pass.

When setting up a flight mission over fields that have rows planted in a specific direction, the flight tracks should be oriented such that they are perpendicular to the rows if possible. This will provide the most consistent data output for this type of field.

When imaging tall trees or crops, the height of the tallest objects should be used for flight planning. it's important to consider the altitude of the forest canopy when calculating overlap.

Best Time for Capture

The time of day for capturing data is also important. Flights should be performed within two and a half hours of local solar noon.

By doing this, the output does not suffer from deep shadows, which can significantly affect the multispectral results. Shadows not only obscure some vegetation but can also affect values of vegetation indices over areas that are fully or even partly shaded.

Avoid sunspots

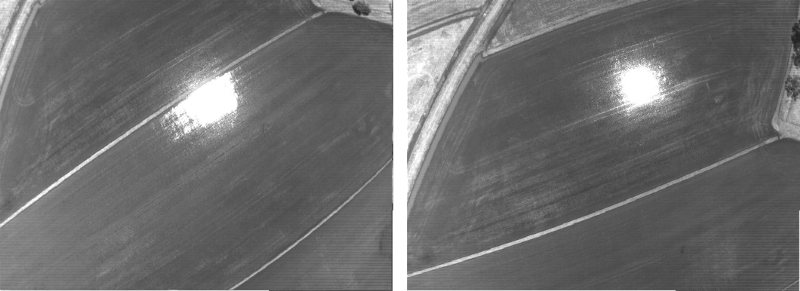

The only exception to flying at solar noon would be if you were to fly in very sunny conditions where, if the sun were directly overhead, it would produce bright sunspots in the data you capture. In cases like this, we recommend flying while the sun is at a lower angle.

Calibrated Reflectance Panels

To create reflectance-compensated outputs, an image of a calibrated reflectance panel should be captured immediately before and immediately after each and every flight. This applies even if a single field is covered in multiple flights – that is, always capture a panel image before and after each flight for that field.

Before capturing the panel, ensure that the camera has a good GPS fix so that the panel images will contain appropriate location and time information. This is important for post processing.

The panel should be placed flat on the ground, far away from any objects that could affect the light that illuminates it. Stand in front of the panel such that the sun is at your back. Then take a large step to the left or to the right. Hold the aircraft at chest level and point the camera such that the panel is centered in the field of view and such that there are no shadows on the panel. The camera should be directly overhead the panel if possible, or offset slightly to prevent shadows.

Shadows on the panel will invalidate the reflectance compensation readings. Also, if light is reflecting onto another object and then onto the panel, the readings will be inaccurate. In this example, light is reflecting off the clothing of the person holding the aircraft and then onto the panel.

When capturing the panel image using your sensor, use either the Capture button in the camera’s WiFi interface page or push the physical button on the front of the camera. External trigger mode, timer mode, or overlap mode should not be used for panel captures. These modes will cause saturation of the panel images.

Ensure that the light sensor has full view of the sun. Do not cover the light sensor while taking a panel capture. This could cause faulty reflectance calibration in image processing software.

CAPTURE MODE

The best way to capture a reflectance panel is via the Automatic Panel Detection/ QR Mode. For more details on this mode, please see the MicaSense Sensor Guide or  this knowledge base article . Alternatively, our sensors have a physical trigger button as well as a capture button in the web configuration page.

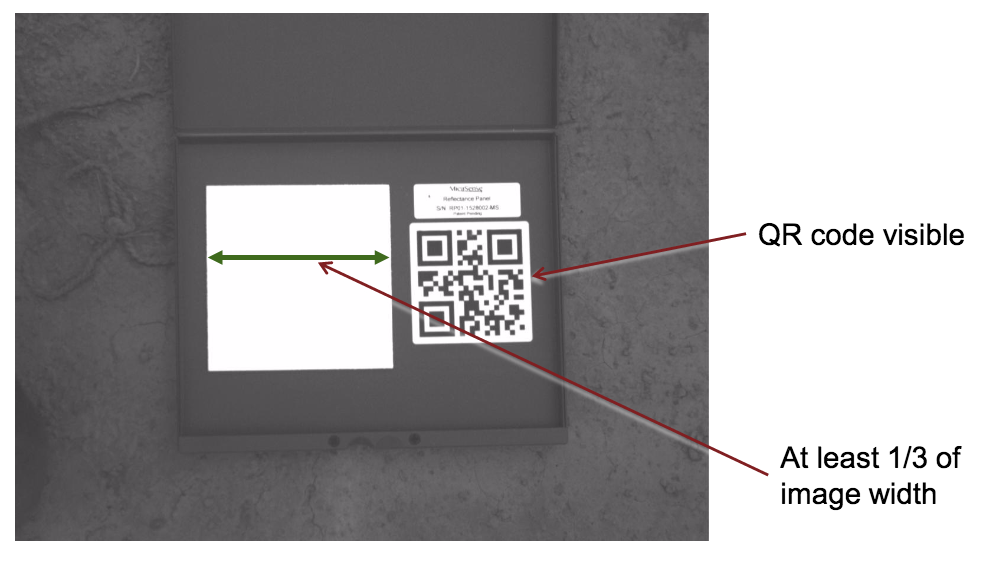

Ensure that the panel takes up at least one third of the image width, and that the QR code and serial number label are visible in the image.

Ambient Light Conditions

In order to collect reflectance-compensated results, the light conditions at the time of capture should be consistent throughout any one flight. Clear sunny days as well as light overcast days in which the ambient light is not changing are best. Avoid capturing data in partly cloudy days with rolling clouds.

Data captured in cloudy conditions, where the sun is partly or fully obscured for portions of the flight, will suffer from anomalies.

The accuracy of the reflectance values for data captured in these conditions is questionable. Additionally, these defects not only affect the color image but can also affect the vegetation indices.

If capturing data in partly cloudy days is unavoidable, make sure that at least one reflectance panel image is captured in bright conditions.

Feature Variability

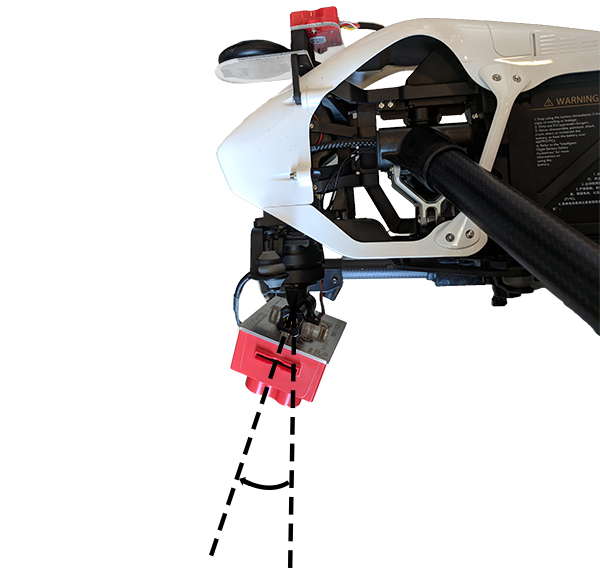

Nadir

Sloped Terrain
