Disable the speaker on the Stonex S10 GNSS receiver

Disable the speaker on the Stonex S10 GNSS receiver


First, you will have to log in to the WebUI interface of the receiver. In order to do so, you will need to use an internet-enabled device such as phone/laptop/PC.

- Click on the network options, find the Stonex S10 receiver with respect to its serial number (located on the bottom of the receiver) and connect.
- Once connected, go to your preferred internet browser (chrome, explorer) and insert the following IP address: http://192.168.10.1.

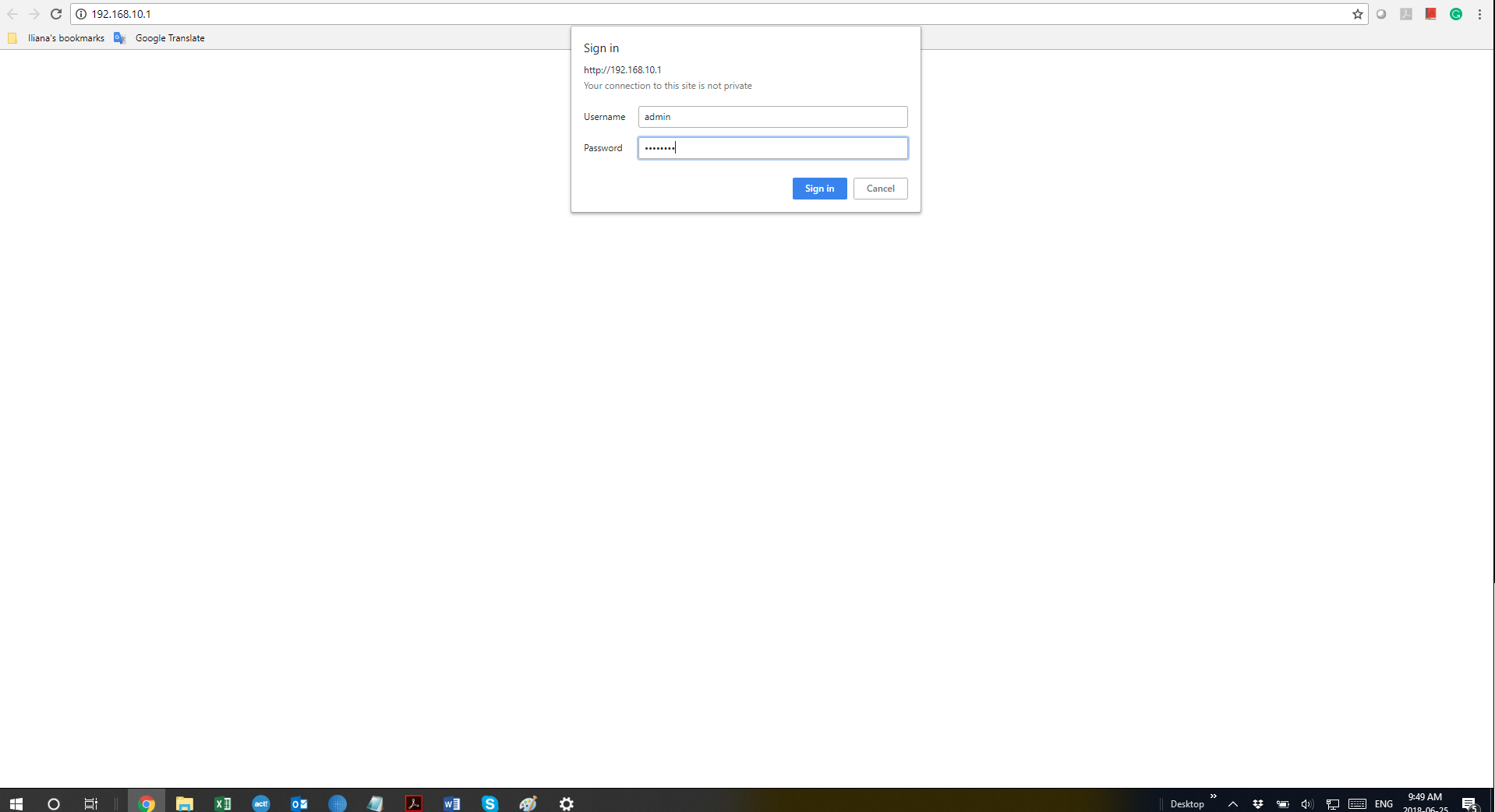

- Insert the credentials and sign in using:
      Username: admin
      Password: password

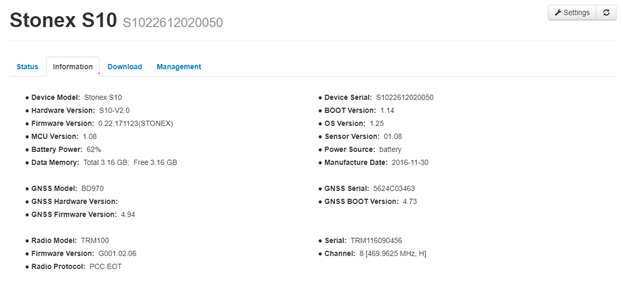

- You will be directed to the main menu. Click ‘Settings’ on the top right-hand side.



- Click on ‘Device configuration’ and scroll down till you will find the setting for the ‘Speaker’ where you can select ‘Disable’.
​
