GeoGis software overview

GeoGis software overview

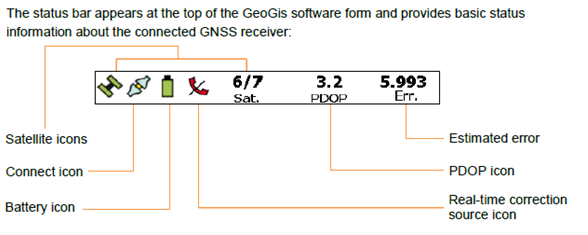

                  i.                Status bar

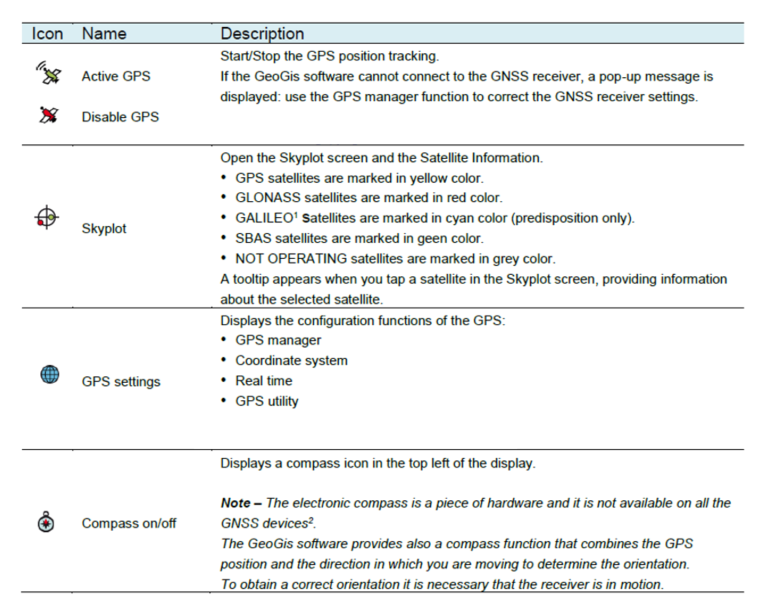

                  ii.                Main menu icon




                               a.    GPS preferences

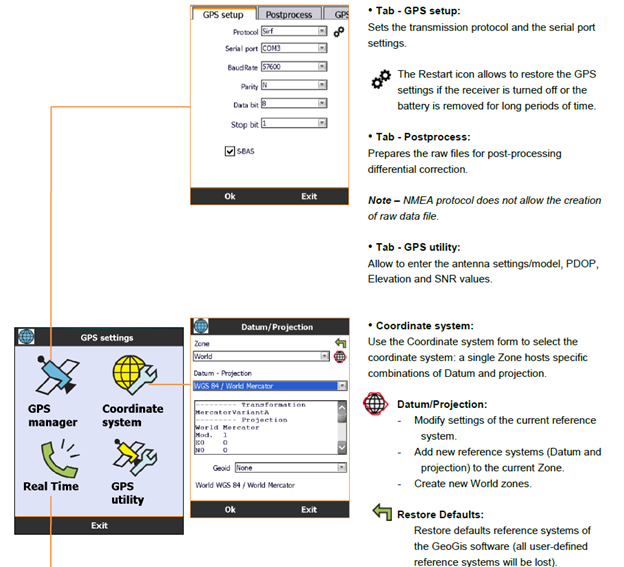

                                                                              GPS Settings


                                            b. Program preferences

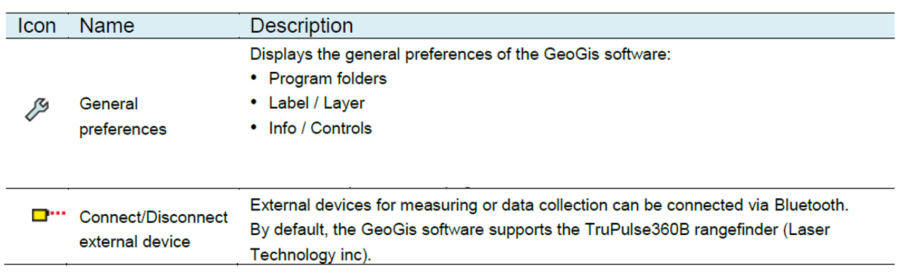

                                                                              General Preferences

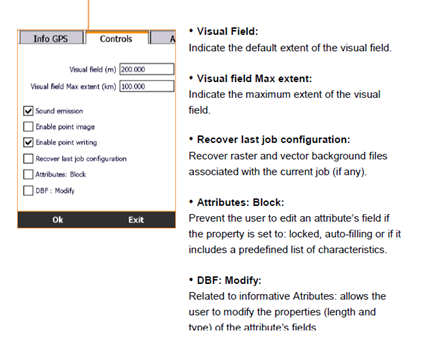

                                           c.     Program preferences

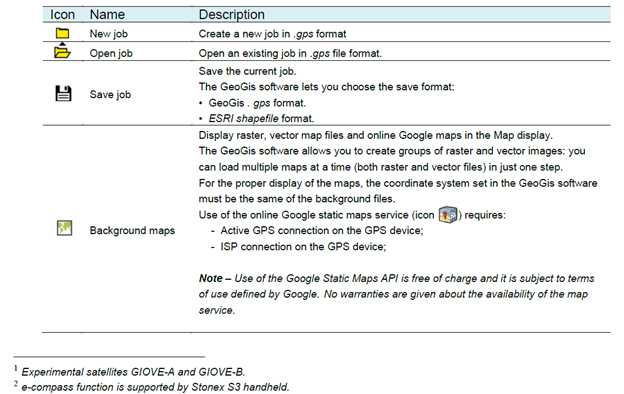

                                            d.    Data transfer

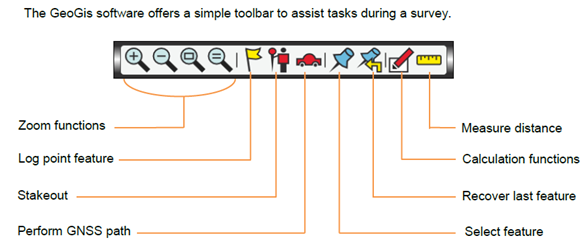

                  iii.                Toolbar
