How to Pair the Boat with Remote Controller

Prerequisites:

1. Boat（GD100）with batteries

2. 5GHZ antenna

3. PC with WIFI


Steps:

1. Power on the boat and install 5GHZ antenna on the boat.

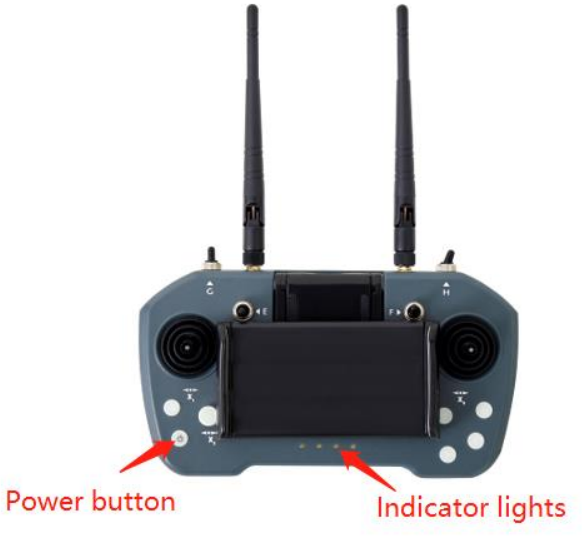

2. Power off remote control

1. Note: short press one time and long press the power button to power off the remote control. then you can see the indicator light gradually go off

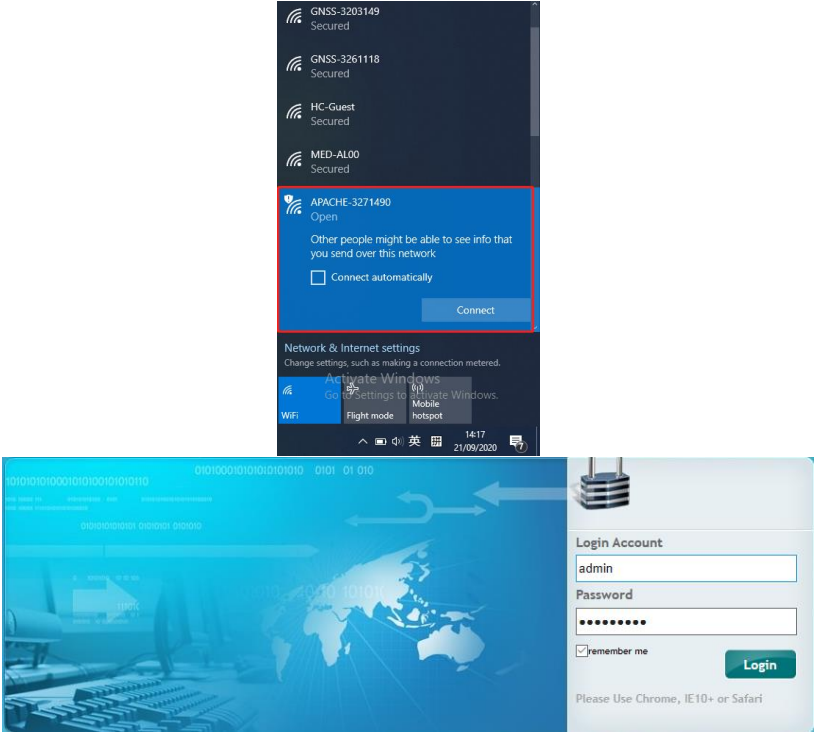

3. Connect the boat WIFI, logon the webpage: http://192.168.53.254/pc/login.html?v=4

      Username: admin

      Password: Admin1234

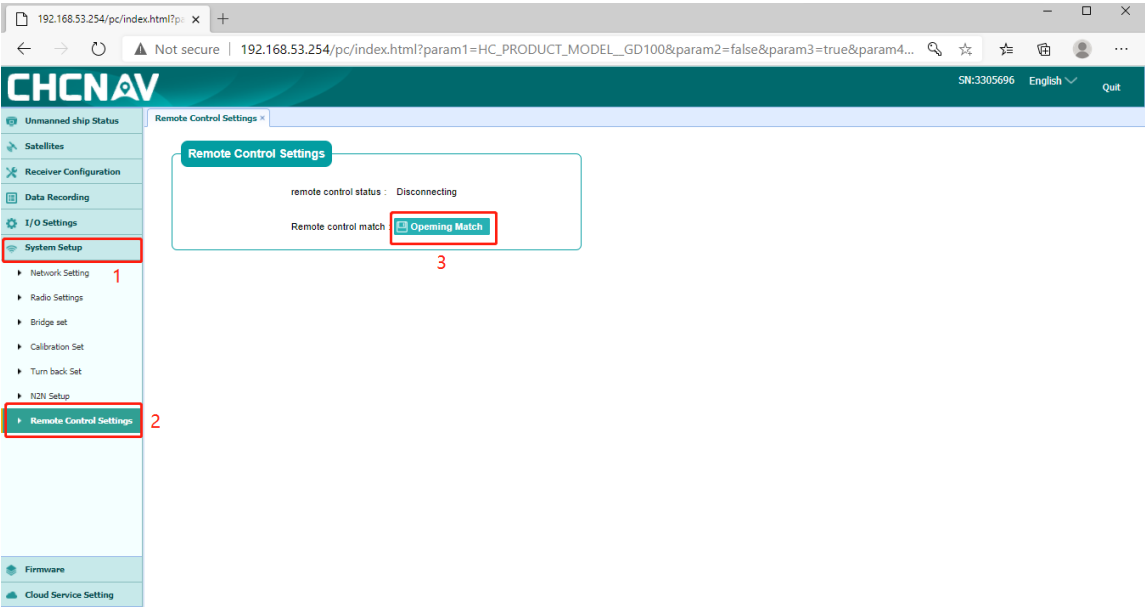

4. Click ‘System Setup’ -> ‘Remote Control Settings’ select ‘Opening Match’.

5. Power on the remote control

      Note: short press one time and long press the power button to power up the remote control. then you can see the indicator lights gradually light on. If       there is no sound that come from remote control, that mean it has successfully paired each other.
