How to Post-Process Apache 3 data
Prerequisites:
- Hydrosurvey（version 2021/12/16 or above）
- Hydrosurvey projects
Steps:
1. Handle the wrong depth

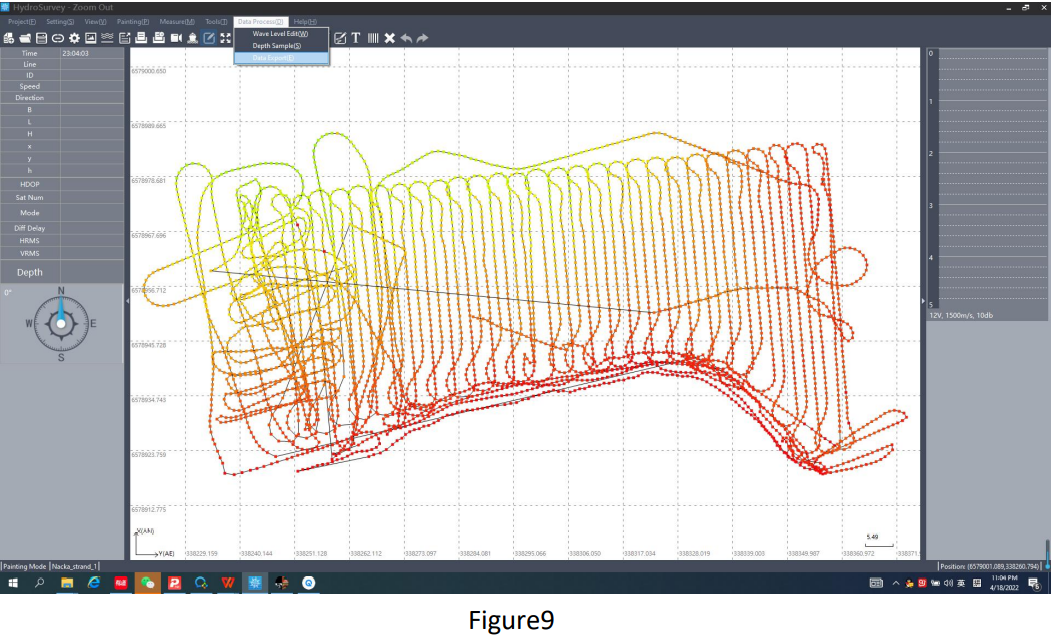

a. Go to ‘Depth sample’ interface

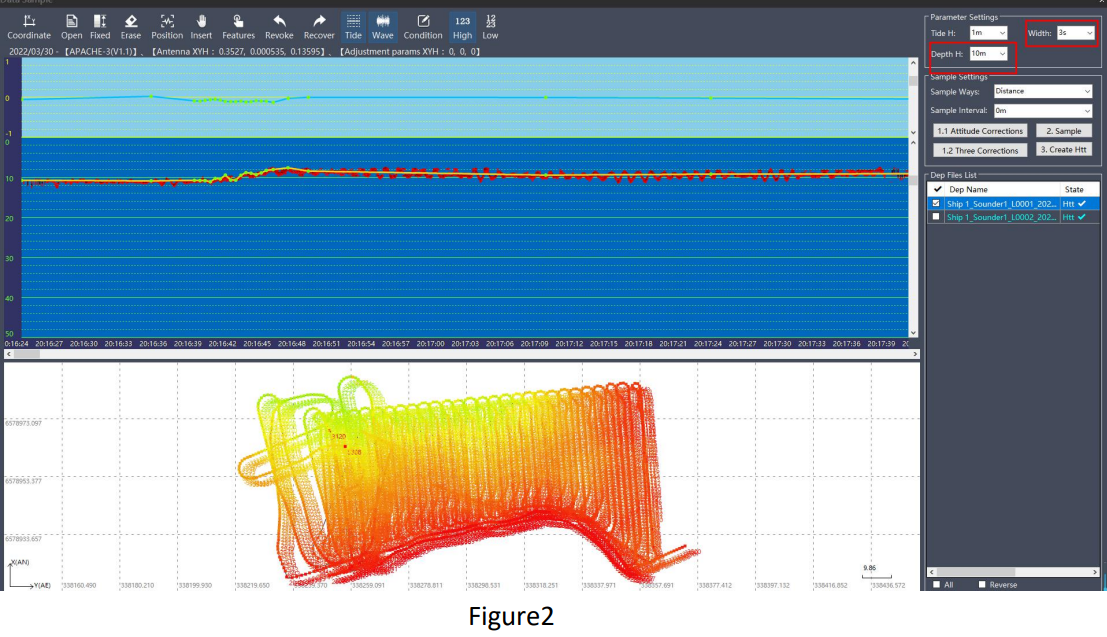

b. Delete the obviously wrong depth from the dep files list one by one. Double click the dep file in dep files list and choose a appropriate ‘Width’ and ’Depth H’ to deal
with wrong depth clearly. Delete the wrong depth with ‘Erase’ button

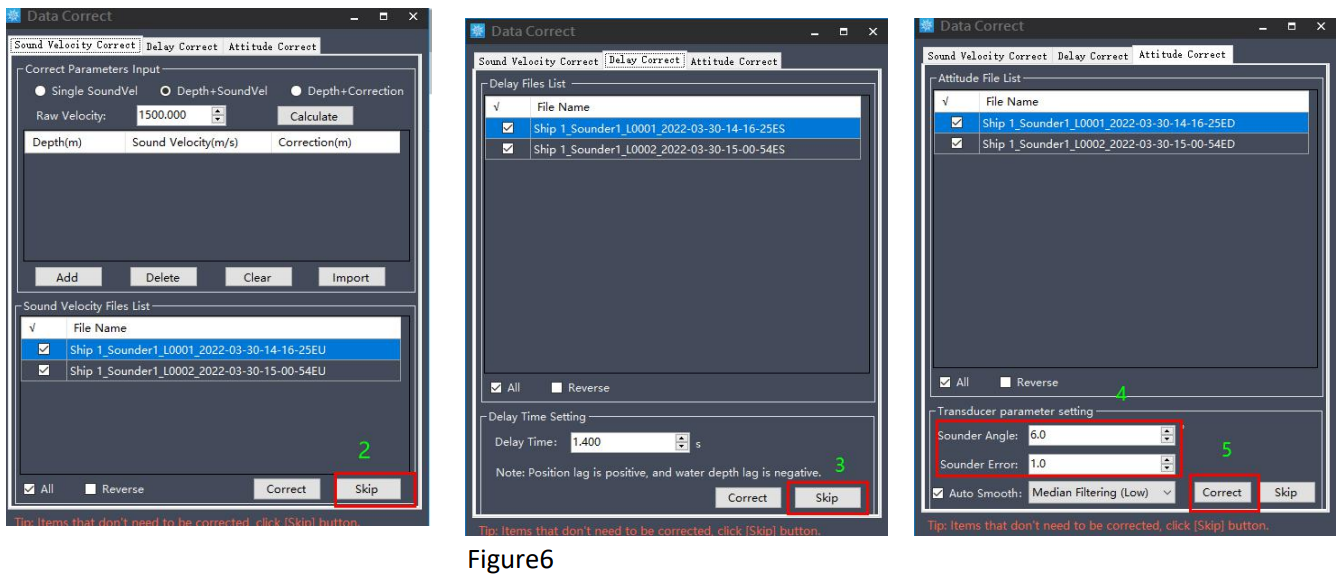

2. Apply attitude data

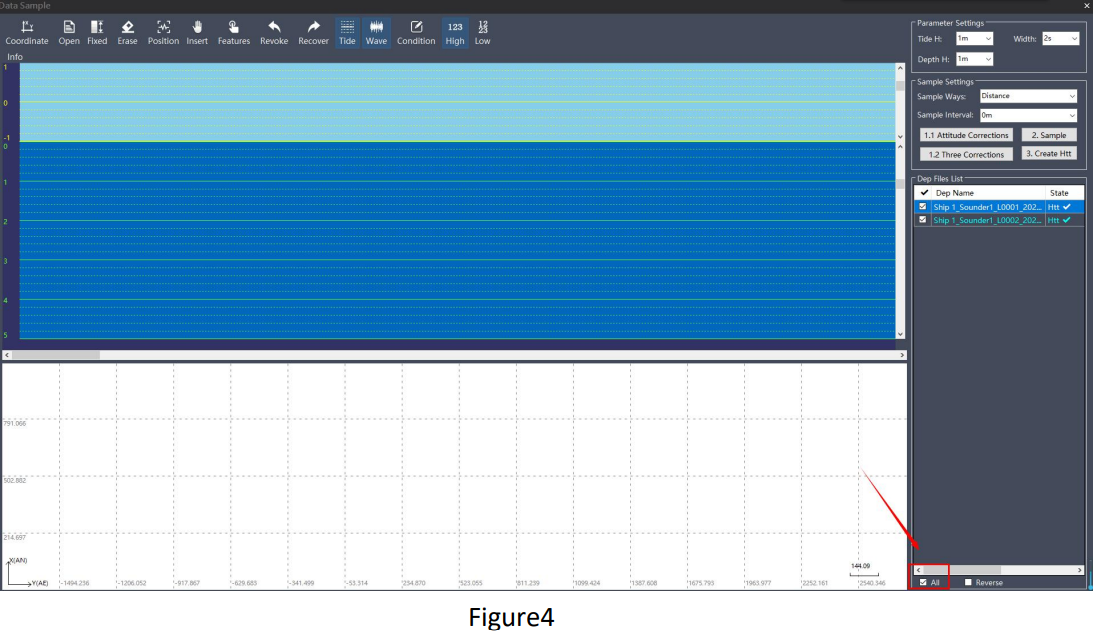

a. Choose all files

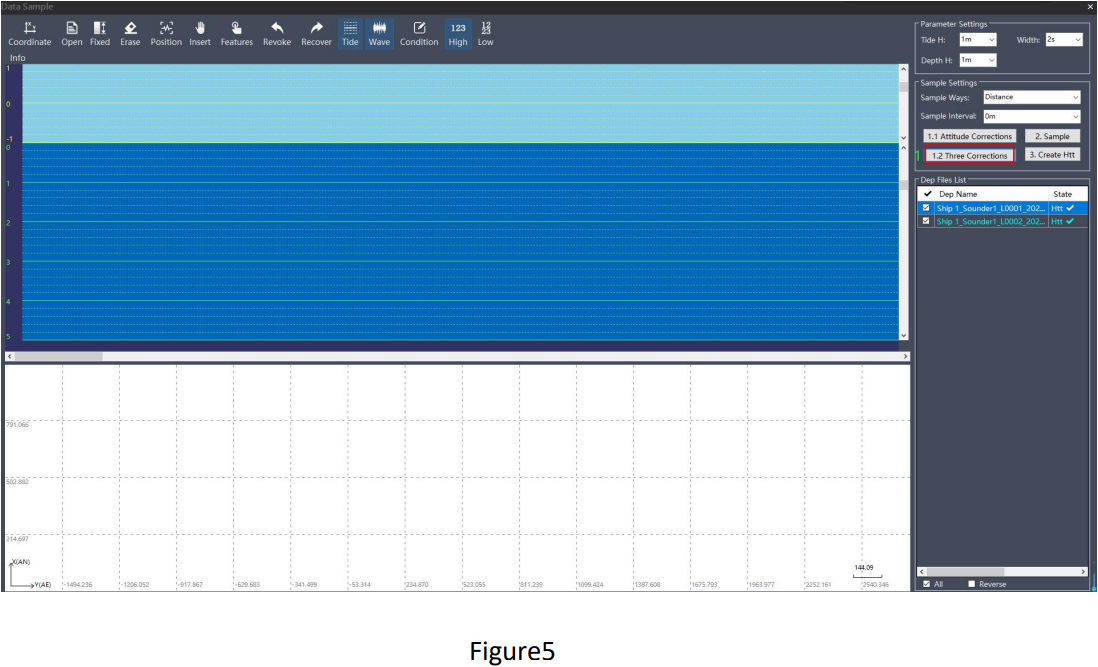

b. Apply attitude data for dep files
Using attitude data following the below steps.

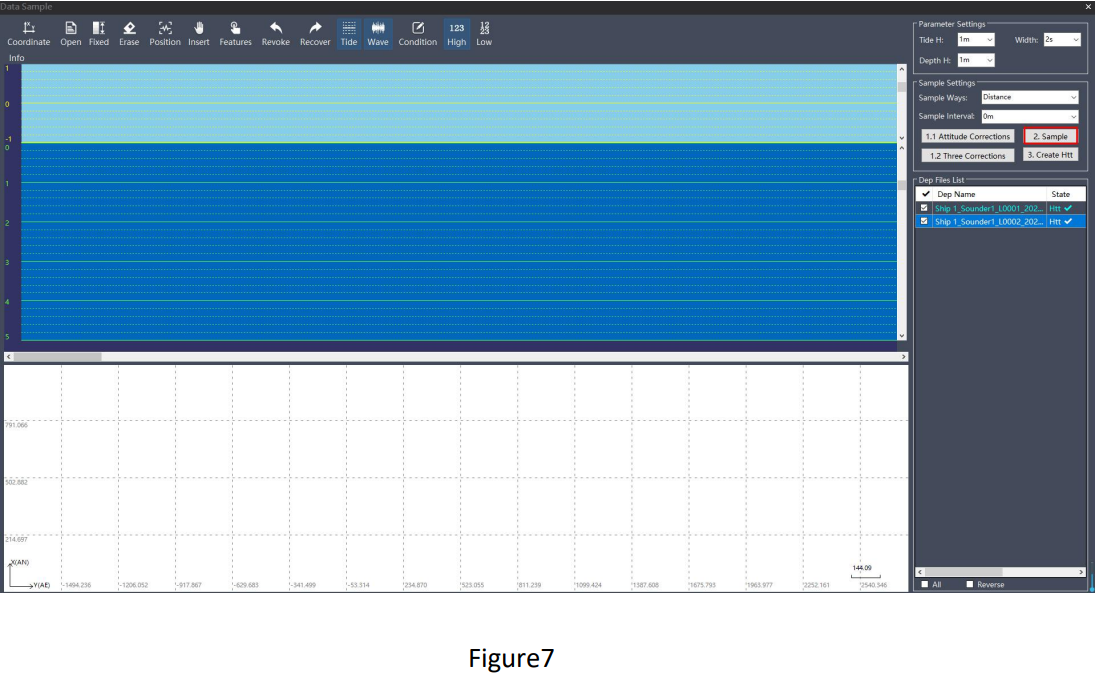

3． Choose a proper sample interval then click ‘Sample’ button

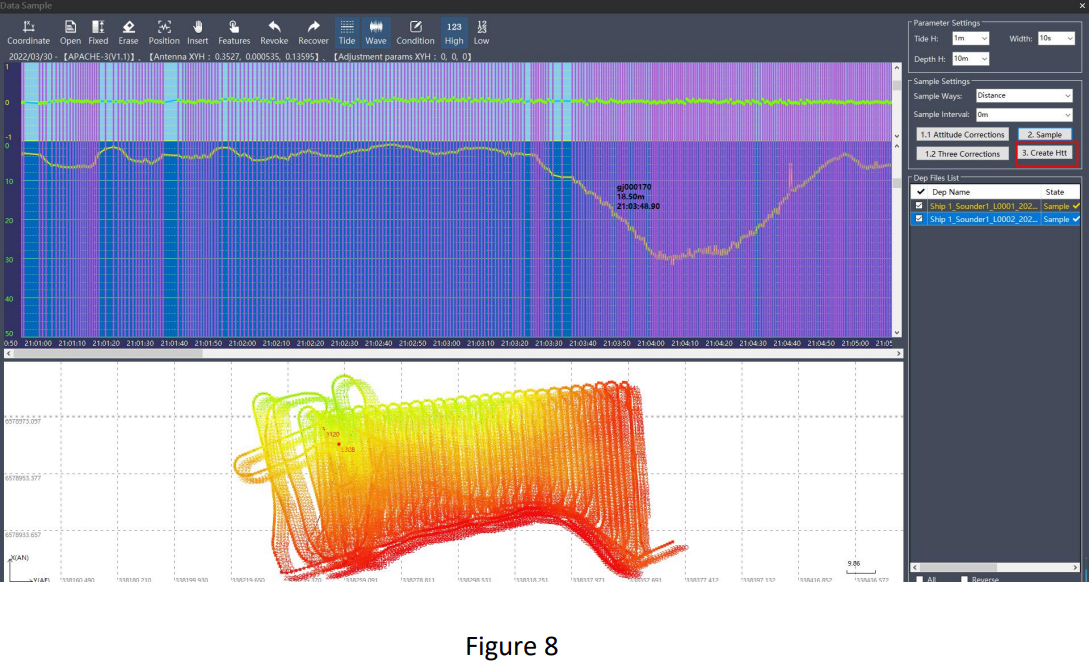

4．Create a HTT file

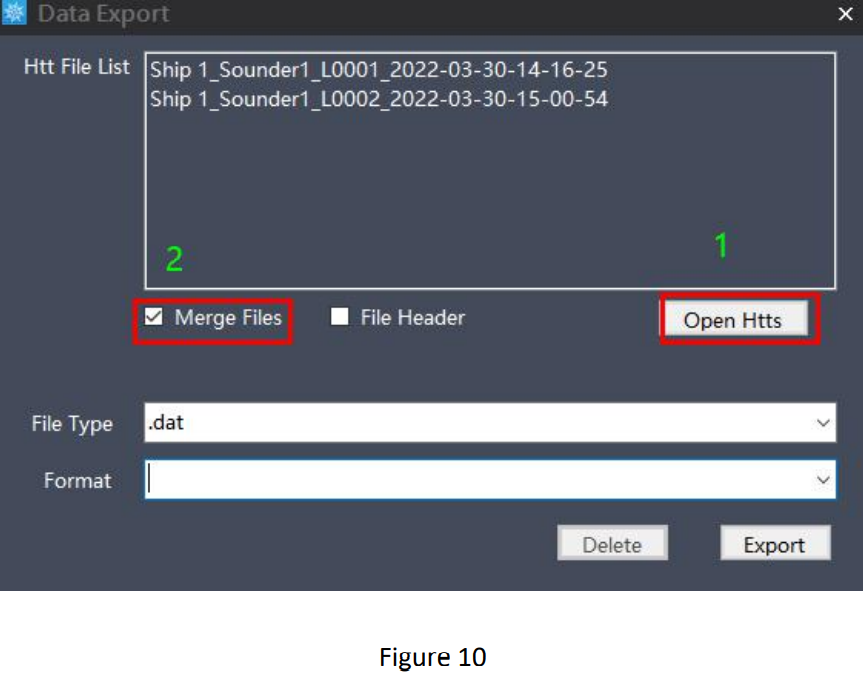

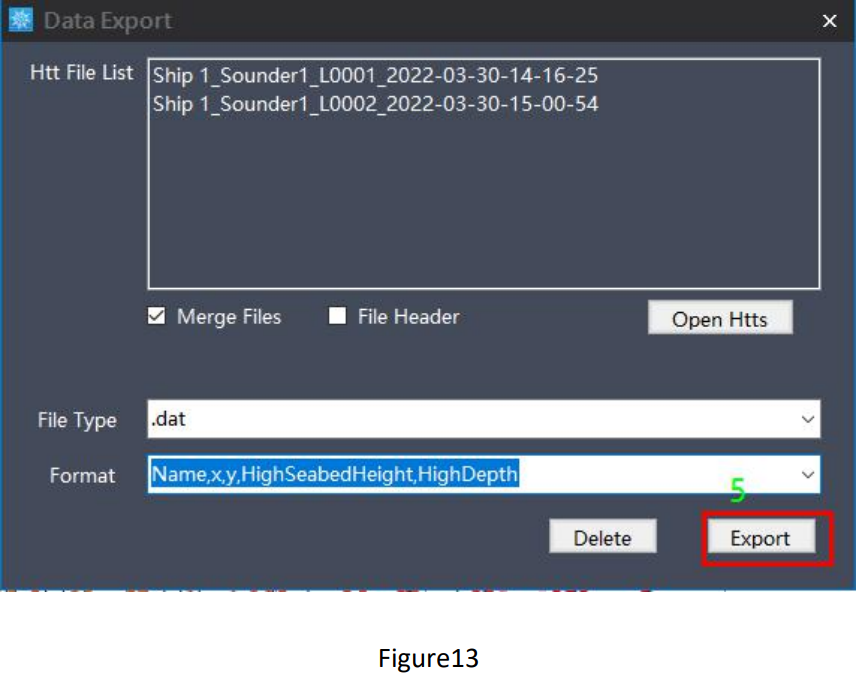

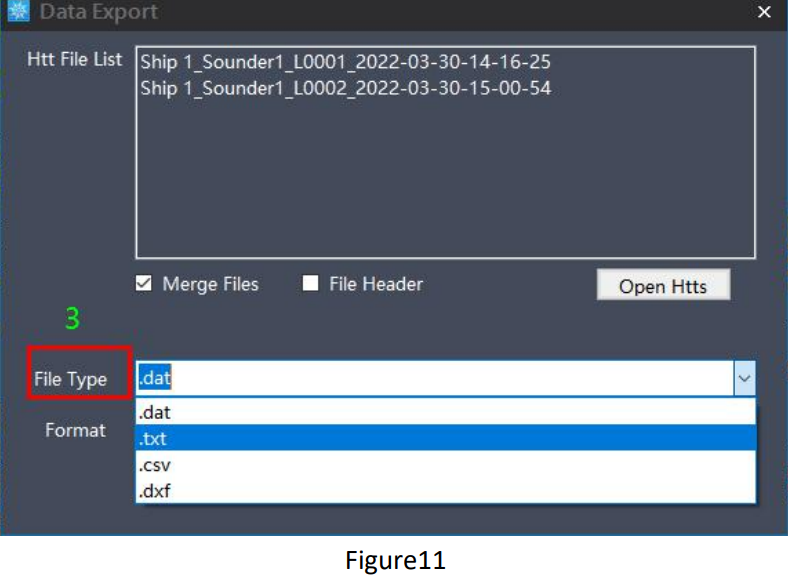

5．Data export

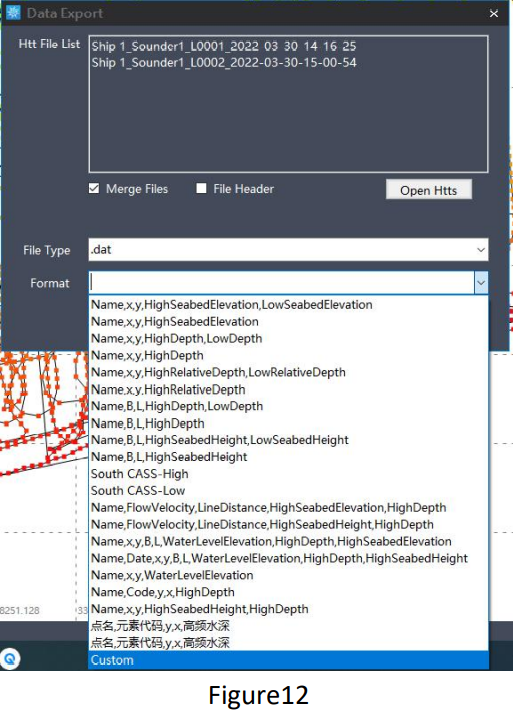

You can choose default format or define the format
