MicaSense RedEdge-MX Configuration for Trinity F90

MicaSense RedEdge-MX Configuration for Trinity F90


Connect to the camera using WiFi on your PC/laptop/smartphone.

Micasense WiFi network: RededgeMX-SN, where SN is the individual camera serial number.

Wifi password: micasense

Log in to the Micasense Camera App using your web browser. Go to the following IP address:


Configure the following items on the Micasense Camera App tab "settings" (gear train icon on the top right in MicaSense Camera App).

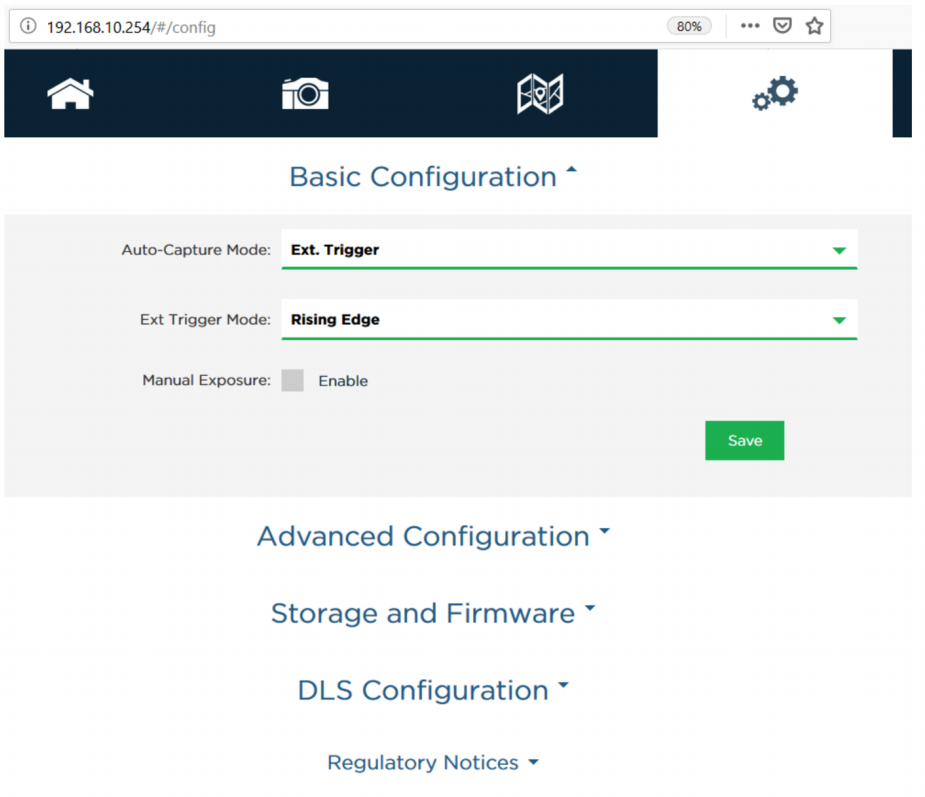

Basic Configuration Section

Click Save button on the bottom of this setting to save the basic configuration.

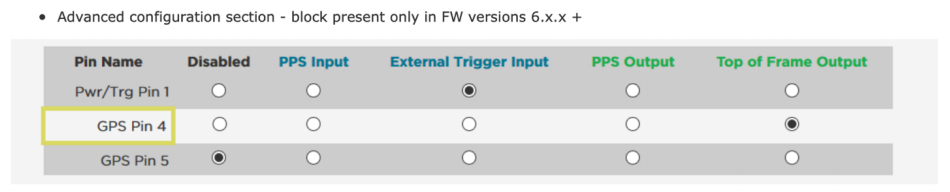

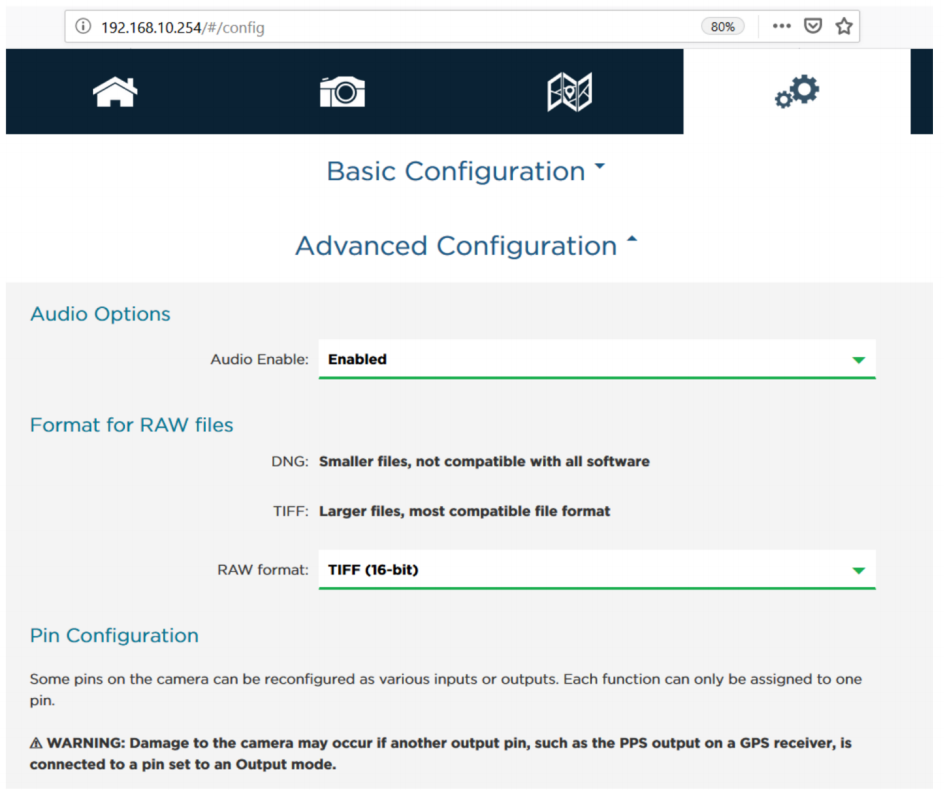

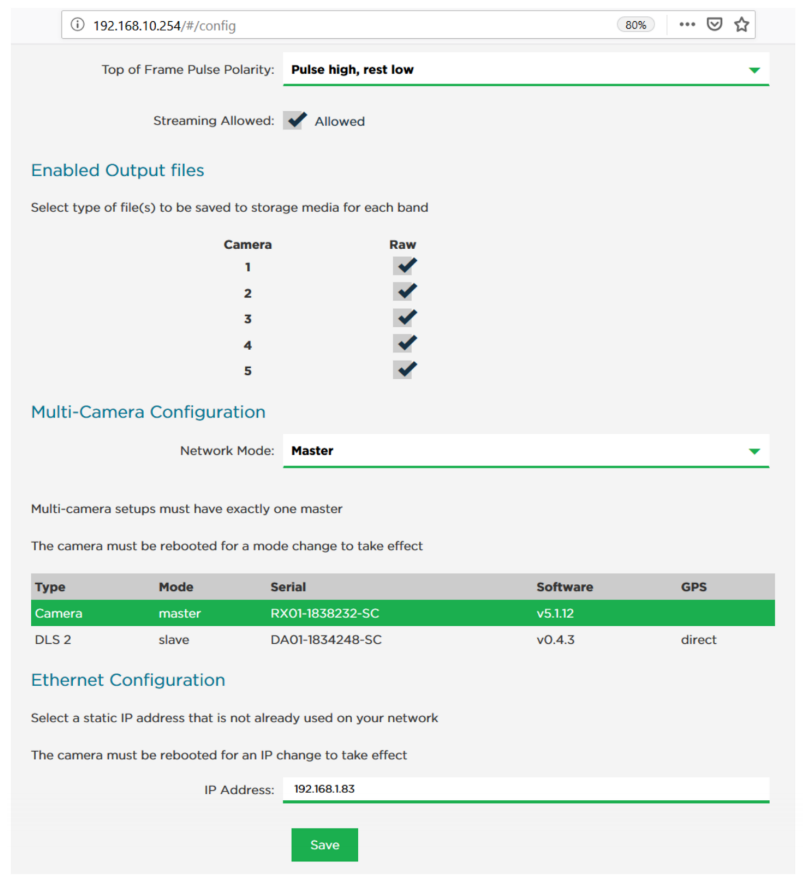

Advanced Configuration Section
