PSDK 102S V2 - 5 Lens Oblique Camera: Product Overview

PSDK 102S V2 - 5 Lens Oblique Camera: Product Overview

The Share UAV PSDK 102S aerial oblique camera is equipped with five individual 24.3-megapixel sensors, which can break through the limitations of single-angle images on traditional mapping camera.

By mounting multiple camera sensors on the same flying platform, it will acquire imagery with more spatial information from multiple angles, vertical and tilt providing more details and textures of captured features.

The 3D data of obtained from the PSDK 102S can realistically reflect the appearance, position, height and other attributes of ground features. Enhancing immersion and makes up for the shortcomings of low artificial simulation of traditional modeling.

It can bring revolutionary efficiency improvements to the mapping field by using UAV and automatic modeling systems.

1. PSDK 102S V2 Introduction



The PSDK 102S V2 features five professional mapping sensors with a total pixel count of 120 million. It uses an advanced and professional integrally-formed structure in this industry.

Through excellent shape and structural design and manufacturing, it creates a professional 5 sensor oblique camera. The body of the camera uses both aluminium alloy and composite material, which is strong structurally while being light weight. The camera only 660 g and has an operating temperature range of -10 ~50℃.

The camera has the best performance in electromagnetic interference resistance, heat resistance and dissipation, water resistance, drop resistance, UV resistance and dust resistance.

USB Type-C interface for fast data transfer without requiring the camera to be powered on greatly improves workflow efficiency.

2. Features

  1. Mounting via DJI SkyPort, compatible with DJI M210 RTK V2 & M300 RTK drones
  2. No modifications are required when mounted with DJI SkyPort
  3. DJI Terra supports high-precision POS file import without laying ground control points
  4. Camera firmware is automatically upgraded online through Share UAV Data Manager
  5. SHARE UAV Data Manager software provides flight data management of captured imagery
  6. Real-time image transmission and telemetry data can be viewed on the DJI RC/App
  7. Five fully closed-loop intelligent detection system
  8. USB Type-C interface for fast data transfer of captured imagery
  9. Professional mapping system provides a high capture rate of imagery

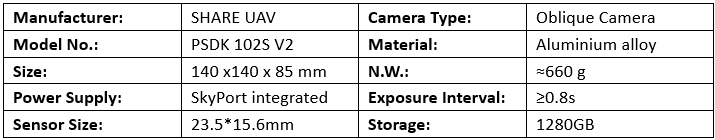

3. In the Box

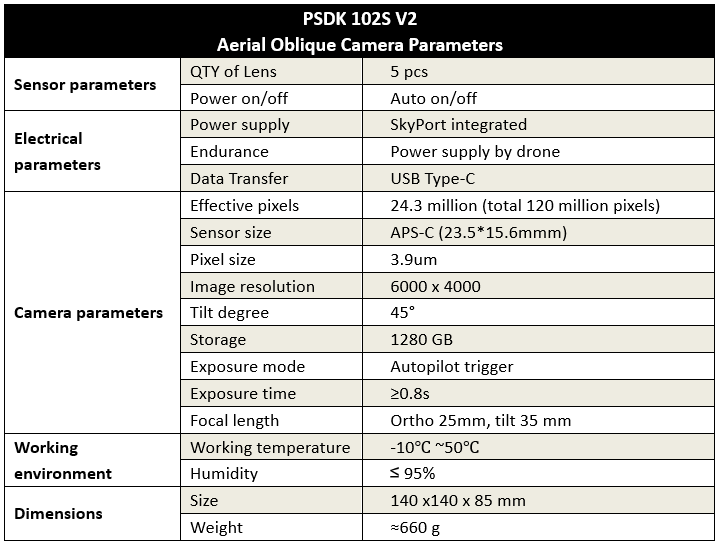

4. Parameter
