1. Powering On

The camera is powered directly from the craft and is switched on and off automatically. Taking the installation of DJI M300 RTK as an example, steps of power on:

（1）Mount the PSDK 102S on the DJI drone, and make sure the camera is secured；

（2）Turn on the drone, the camera will start automatically and enter the self-test. The total startup duration of the camera will be ~35s, the camera will beep once the startup is completed.

【During the startup process, the camera display successively displays: LOGO and firmware version → initialization → starting up → startup completed】

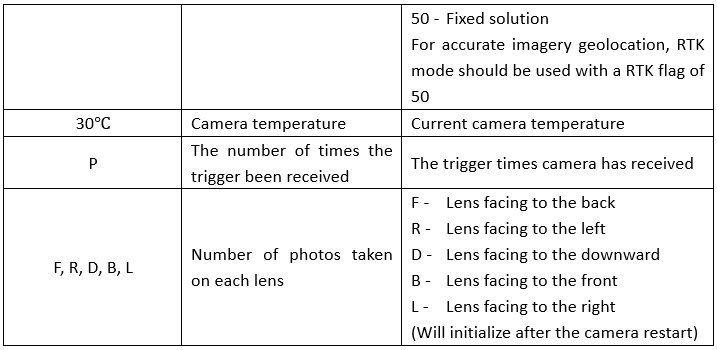

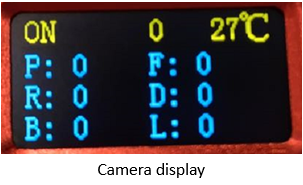

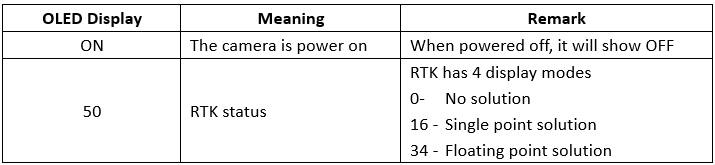

（3）After the camera is turned on, the OLED display interface is shown below：





（4）During the camera start up process, the real-time data window of the Pilot screen shows the photo-unavailable state, and displays the photo-capable state after normal booting.


（5） During the camera start up process, the time setting or camera setting interface will appear on the image transmission interface. At this time, the camera initialization will automatically switch the interface. After the camera is turned on and self-test has been completed, the image transmission display will show the camera interface.


2. Taking Photos

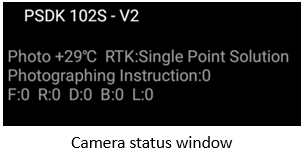

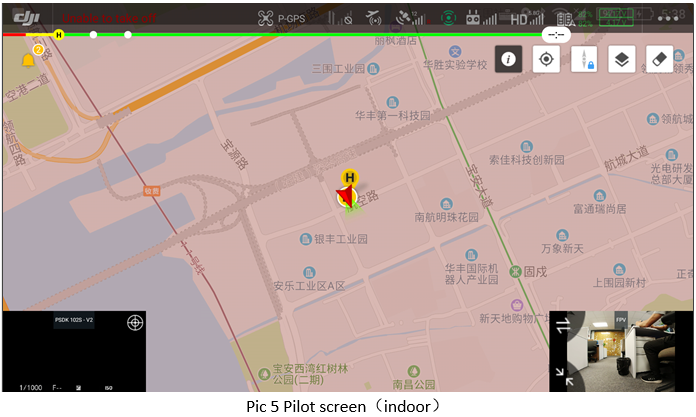

Take working with DJI M300RTK for example, camera is on, Left top window shows the status of camera, 5 times trigger and each lens have take 5 photos. The left bottom window shows the real-time image of the down view lens. In this example the indoor light is insufficient and the left bottom image is black.


3. DJI Pilot Setting

Take working with DJI M300RTK for example, Using DJI Pilot for route planning and set flight parameters.



3.1 DJI Pilot Mission - PSDK 102S V2

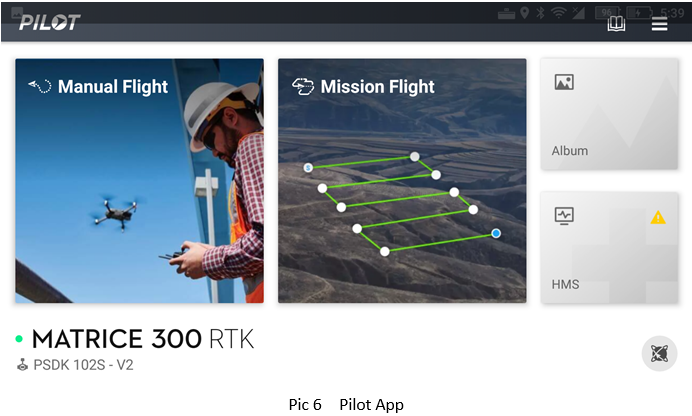

1)     Open DJI Pilot

2)     Select Mission Flight

3)     Create a route

4)     Mapping Mission

5)     Select Camera

6)     Select PSDK 102S

7)     Input mission parameters

a)      Flight Height

b)     Speed

c)      Overlap

d)     Margin

e)     Photo Capture Mode

f)       Other parameters as required

8)     Plan flight area

9)     Fly mission


3.2 PSDK 102S V2 Parameter

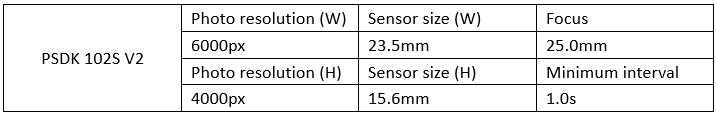

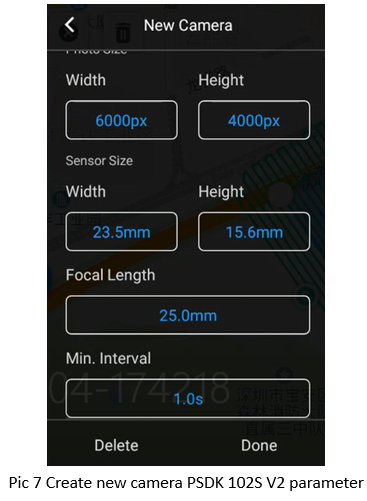

If using a third party app, camera parameters may need to be set manually.



Click save after setting done.


3.3 Payload Setting

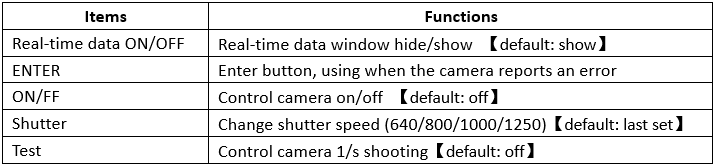

Enter the payload setting menu, which has those functions:

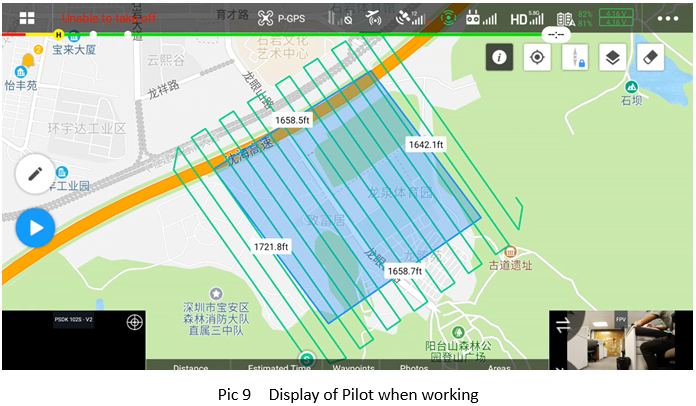

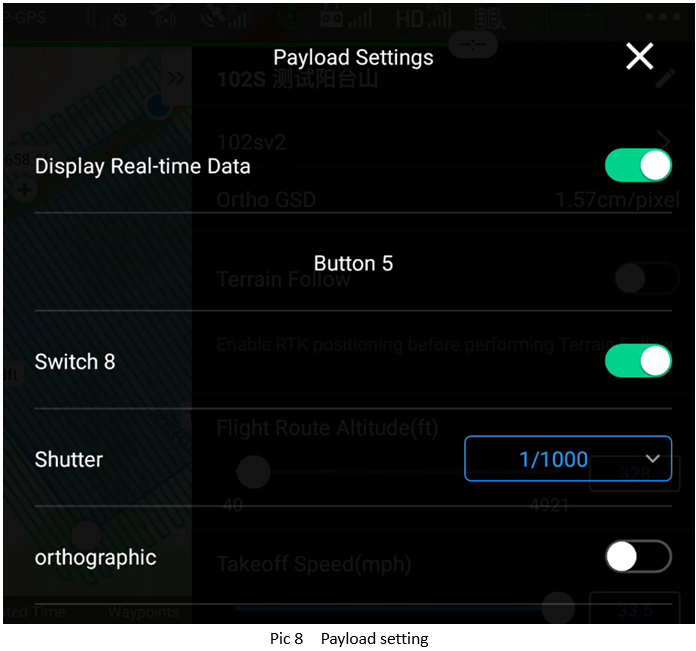

As shown in Pic 9, the working environment has relatively weak light intensity. The user can adjust the camera's shutter speed according to the actual situation to meet the camera's sufficient amount of light to ensure the quality of the photo. The camera saves the shutter speed used last time by default.

4. Repair

1) Common problems might happen when using oblique camera PSDK 102S V2.

A. Payload cannot find the image database file

B. Image database file error

C. Payload cannot write in the storage card correctly



2) When the above errors happen, there are two methods to repair resolve the issue.

A. Automatic repair: user can restart the device, and the camera will automatically initiate the repair.

B. Manual repair: Click the ENTER button in the payload settings and confirm the selection according to the instructions.
