PSDK 102S V2 - 5 Lens Oblique Camera: Installation

1. Camera Introduction

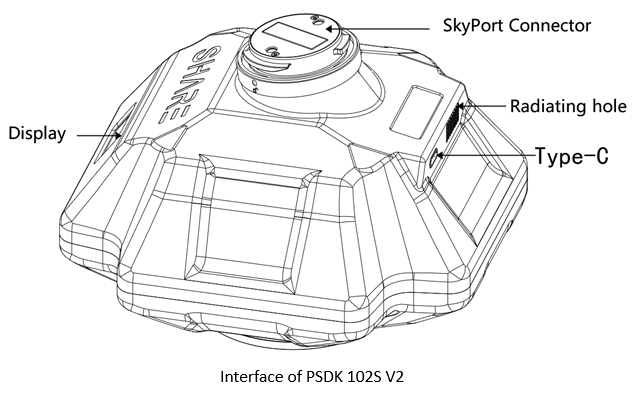

The PSDK 102S V2 has an OLED display on the front. When installing the camera, ensure that the display is aligned with the aircraft nose. The lens near the front of the camera is the back-view, and the drive letter is named after the lens Angle orientation, which is opposite to the lens mounting position.

The top of the camera is equipped with DJI SkyPort interface, which is compatible with DJI M300 RTK. Through one interface, it integrates power supply, data transmission, RTK signal, graph transmission, mounting and other functions.

The integrated DJI SkyPort has been designed with a slope that compensates for the angle of the aircraft while in forward flight to improve data capture.

2. Payload Installation/Removal

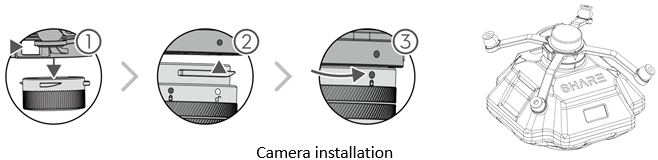

Installation steps：

(1) To remove SkyPort cover of the drone, press and hold the release button and turn the cover so it can be removed.

(2) Remove SkyPort cover of the camera, align the white point of the camera with the red point of the drone, and embed it in the installation position.

(3) Rotate the camera to the lock position, align the red dots, the camera is installed.

Removal steps:

(1) To remove camera, press and hold the release button, rotate the camera in the opposite direction until the red point is aligned with the white point, then remove the camera;

(2) Replace the SkyPort covers and lens cover.
