Stonex S900 height measurements

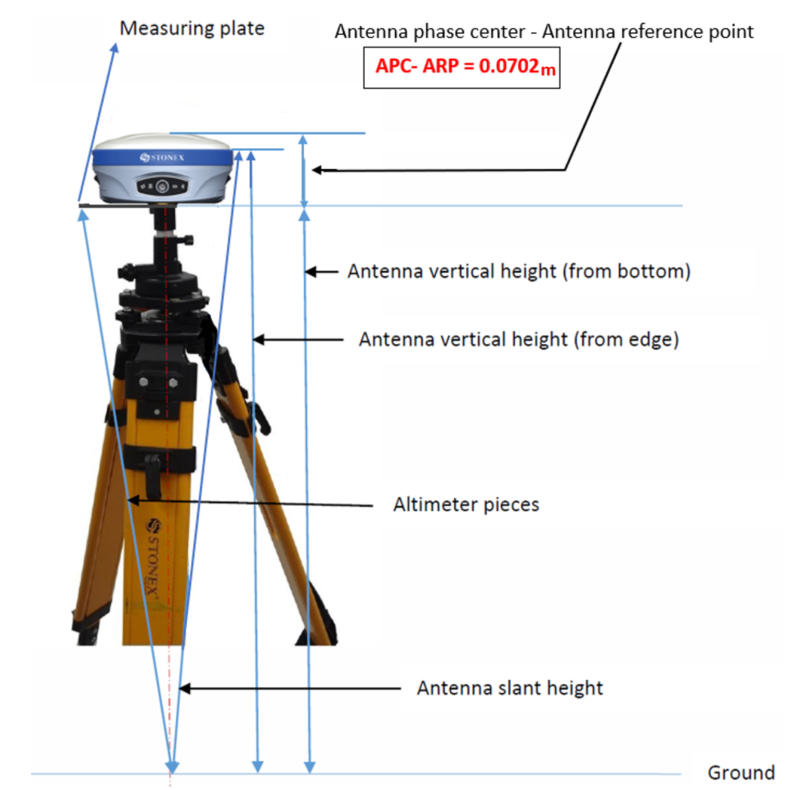

Note that the
S900 receiver has an indication on top of the blue ribbon for slant height
measurements, as shown below.
Note that in Carlson
Surv software, the antenna height can be recorded either as vertical or slant.
The vertical ‘Vert’ height is measured vertically up until the ground to the
bottom of the receiver, while the ‘Slant’ refers to the height measured from
the ground up to the top of the blue ribbon.
