Stonex S900 GNSS Receiver Registration via WebUI

Stonex S900 GNSS Receiver Registration via WebUI


- To access the Stonex S900 WebUI, first power on your receiver. Once powered on, find your device serial number under the available WiFi networks and connect. Note that the serial number is placed at the bottom of your receiver.


- Once Connected, go to your preferred internet browser and insert the IP address: http://192.168.10.1 . You will then have the following pop-up window:

- Insert the credentials:

Username: admin

Password: password


- Now, you are on the S900 WebUI main page. Here, you will be able to view all the information about your S900 receiver.

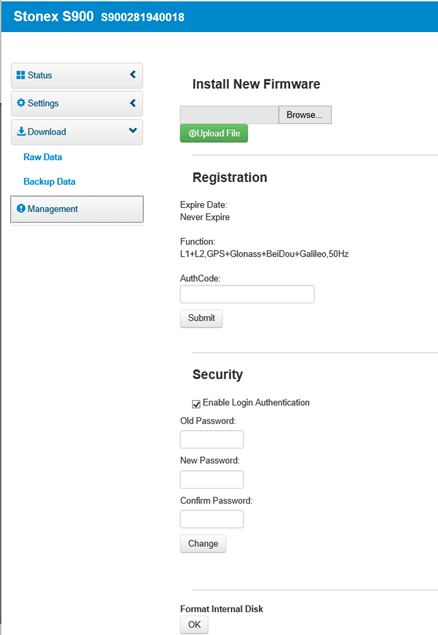

- Go to ‘Management’. Under Registration << AuthCode insert the registration code provided by your dealer and hit Submit.
