LP12 Searchlight & Broadcasting System - User Manual

LP12 Searchlight & Broadcasting System - User Manual

1. Introduction of LP12

CZI LP12 searchlight & broadcasting system is a two-in-one payload specially designed for the DJI M30. LP12 is with a streamlined aesthetic design concept. It challenges the limits of performance while maintaining artistic taste and effectively reducing wind resistance to enhance the endurance of the drone's flight operations. The LP12 is the most efficient lighting and sound broadcasting product up to now of CZI, combining the imaging optics of the GL Series gimbal searchlight with the LRAD long-range sound broadcasting technology of the MP Series digital voice broadcast system in an extremely lightweight integration. It weighs only 270 grams, with an effective illumination distance of 150 meters and an effective sound broadcasting distance of 300 meters, which can meet the operational needs of law enforcement patrol and forest search and rescue scenarios. By deeply integrating with DJI Pilot APP, all functions of sound broadcasting and light illumination can be called quickly, making the operation more convenient.
\

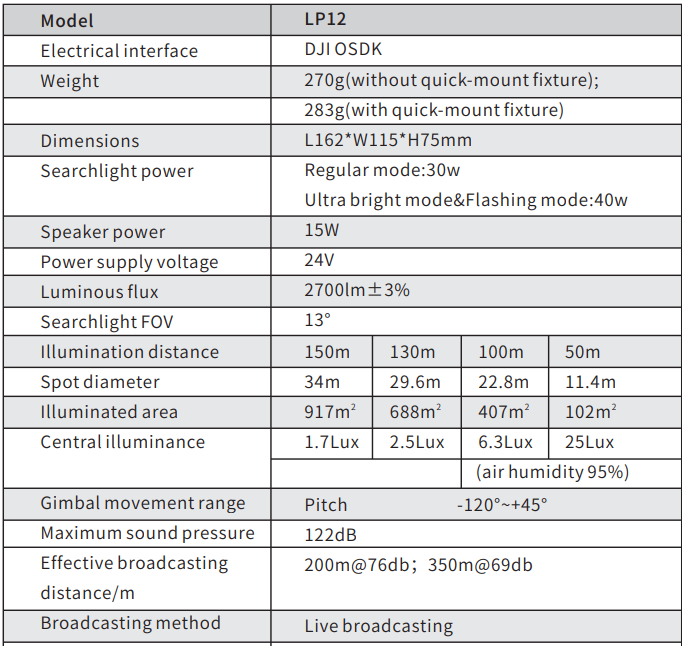

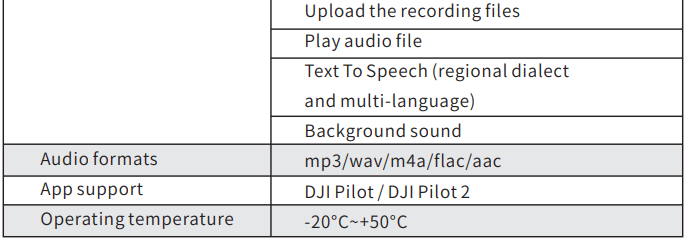

Technical Parameters



2. Installation Tutorial of LP12

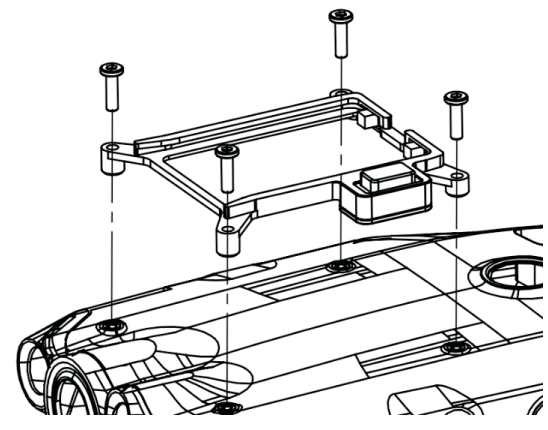

1. Install the quick mount/dismount bracket to DJI M30. Use H2. hexagonal screwdriver and M3×10 screws to mount the bracket on the M30.

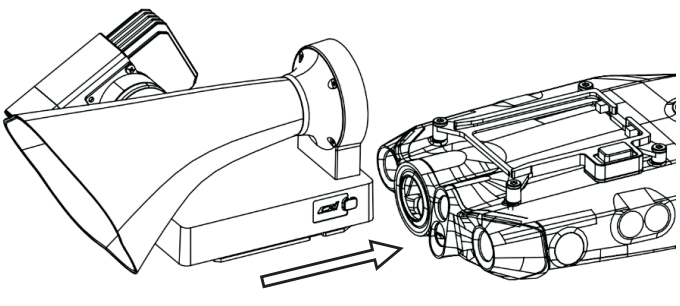

2. Slide the LP12 on quick mount bracket along the rails to the end and shake the bottom of the LP12 to ensure it is in place and securely locked.

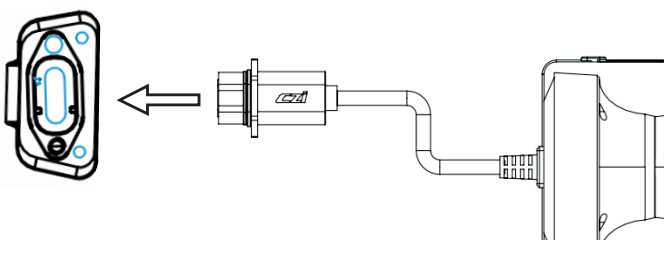

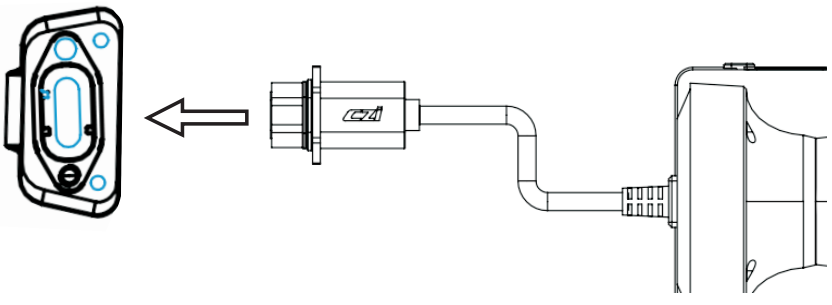

3. to put the LP12 power/communication cable to the MSDK interface. (Note: do not operate with M30 is on)

3. DJI Pilot APP Tutorial

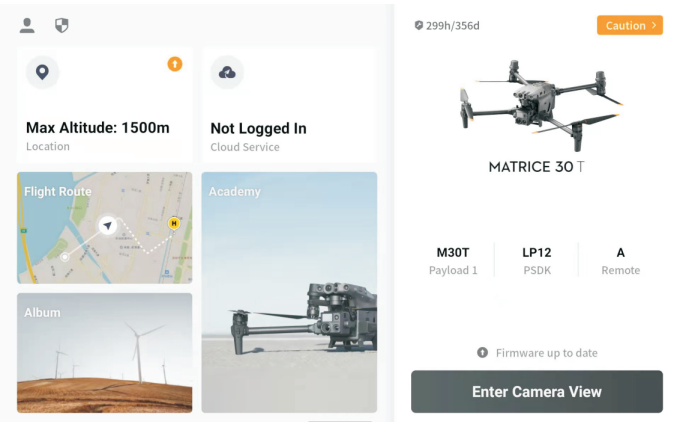

1. Click DJI Pilot enter into main interface. On the right showing LP12 PSDK, indicating payload recognized. Next operation, click flight interface.


2. Entering flight interface, click right bottom “PSDK”, showing payload control.

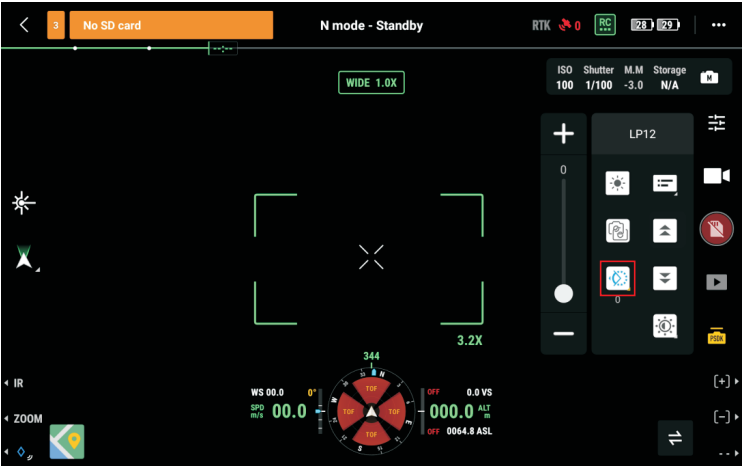

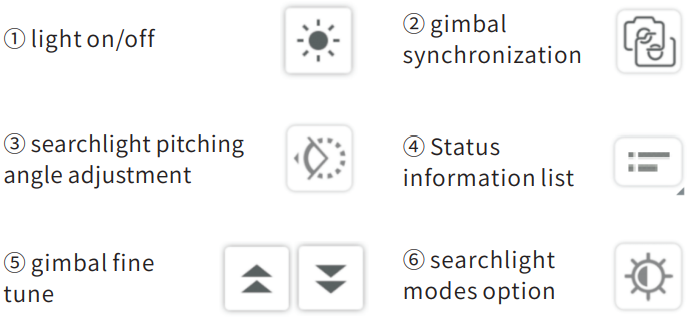

3. Click  button, slide adjustment bar to adjust gimbal pitching angle.

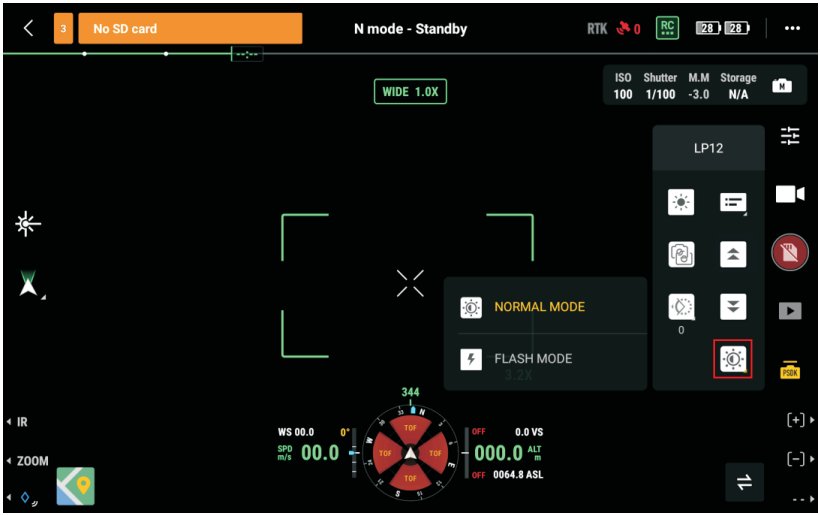

4. Click  button, choose light normal brightness, ultra brightness, strobe mode.


5. Click  button, open searchlight.

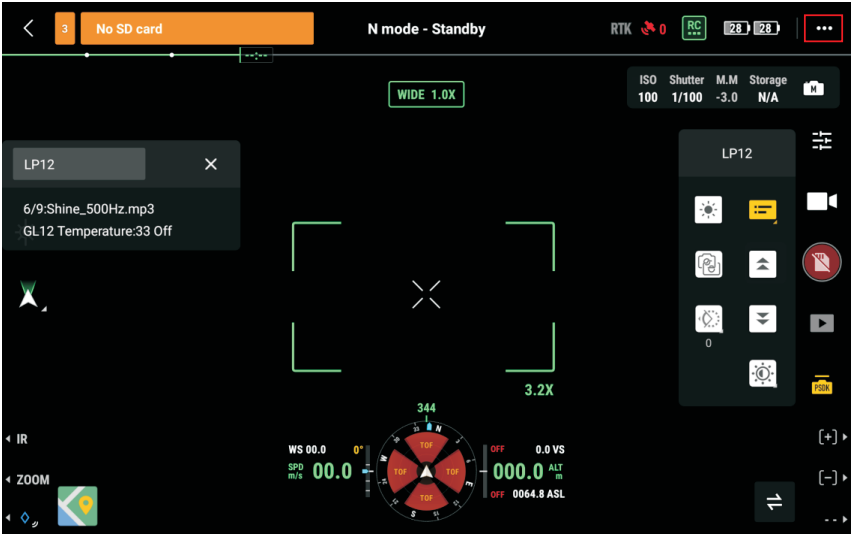

6. Click right top menu, enter menu.

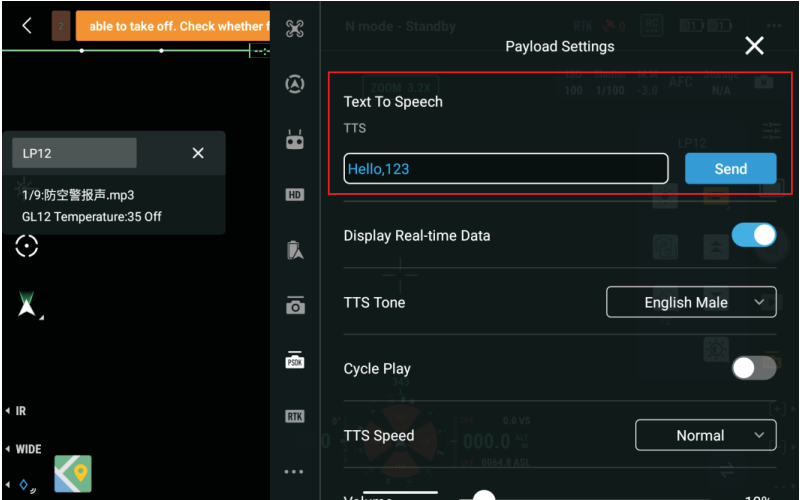

7. Click 3 party payload button PSDK, text to speech function, click TTS square to enter text, click send button.

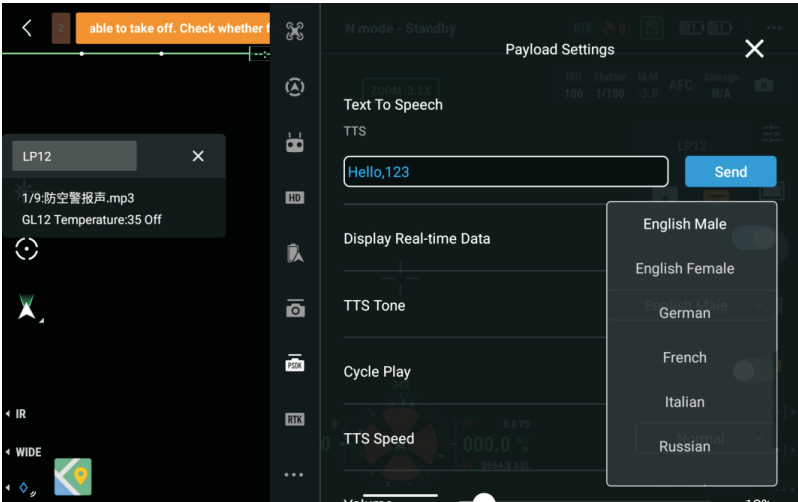

8. TTS human voice options. Human voice options are Cantonese, Hunan dialect, DongBei dialect, English, Italian…etc.

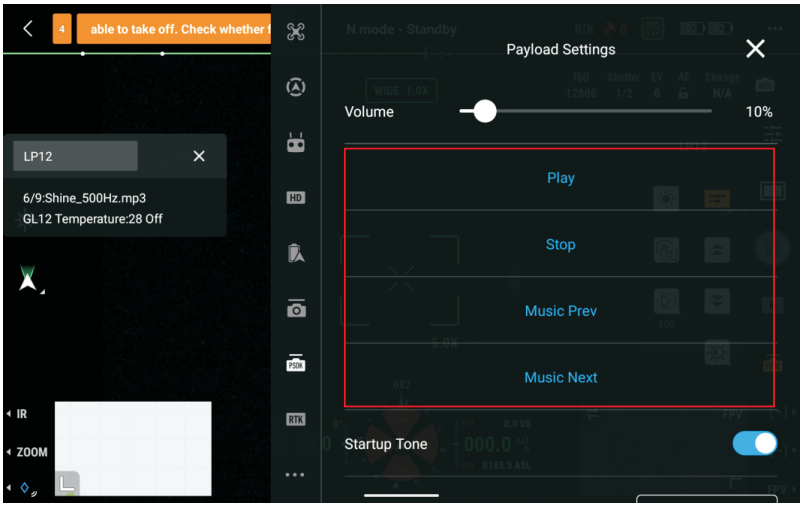

9. Play audi file

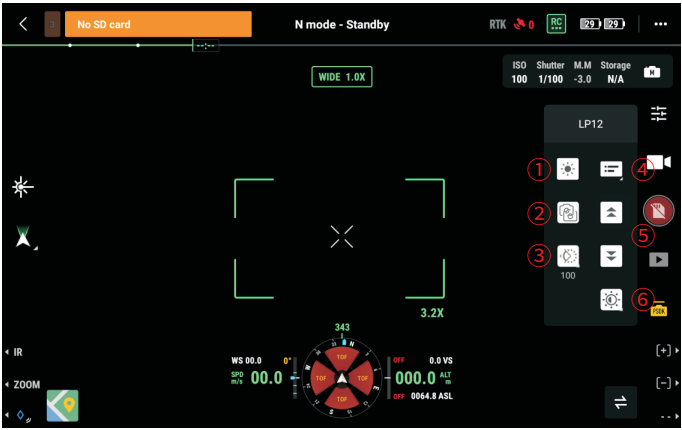

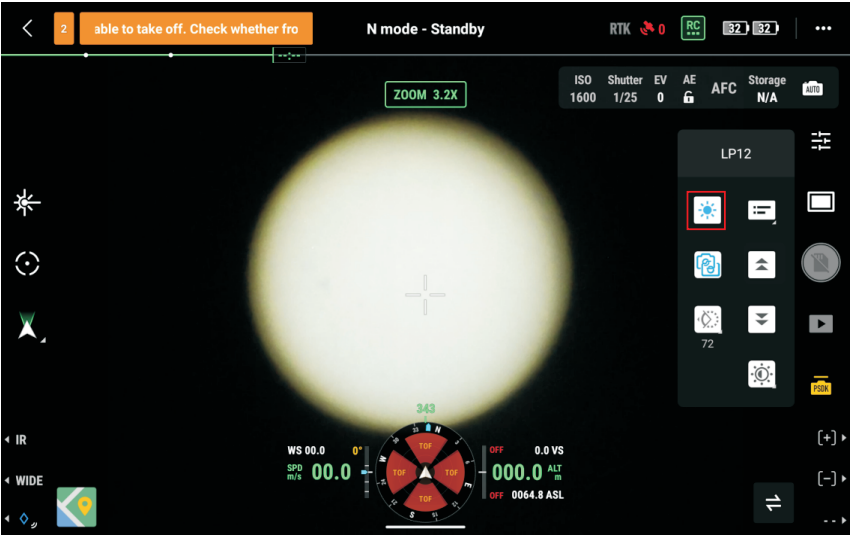

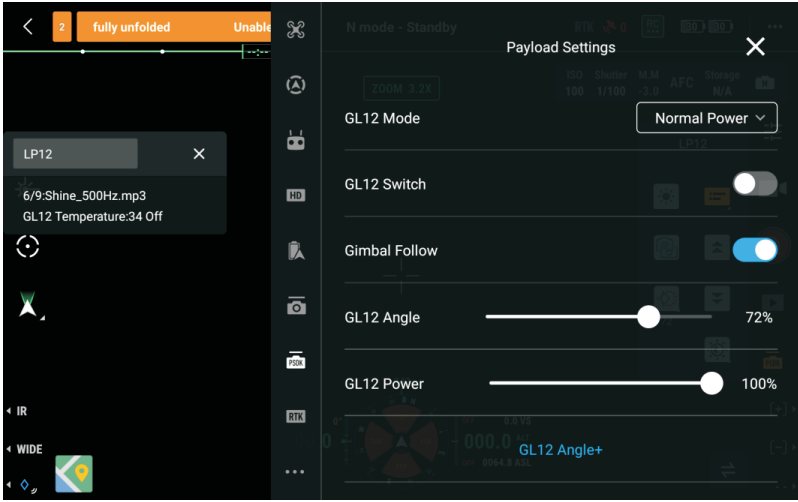

10. Searchlight operation interface


11. LP12 will have live broadcasting function. Pls stay tuned for firmware upgrade.

4. Micro USB Port Instruction

4.1 Audio File Copy

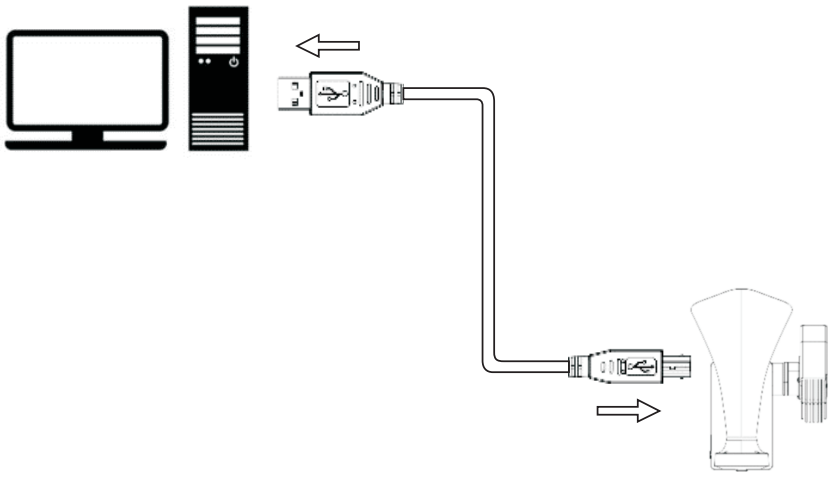

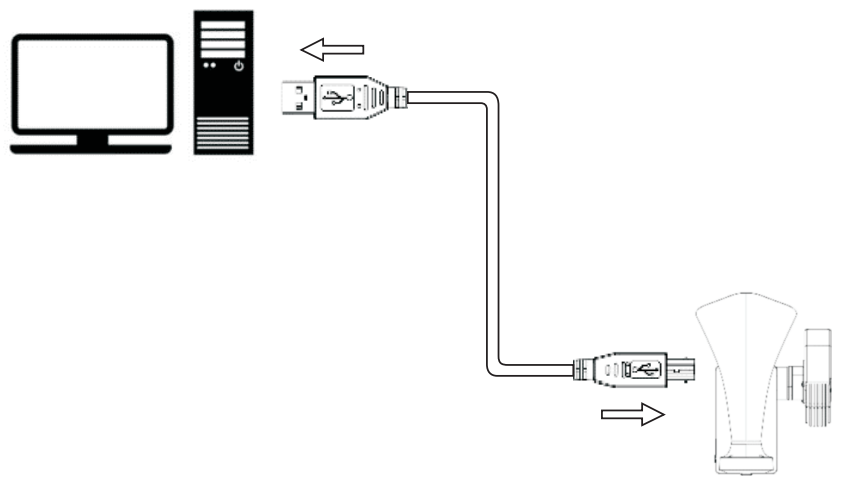

1. Use micro USD cable to link up LP12 to computer.

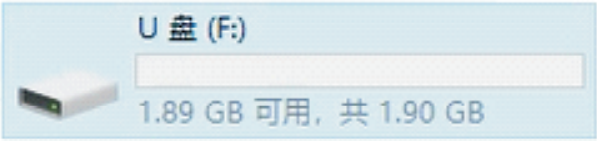

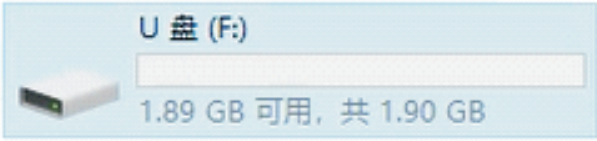

2. Connected, U drive will be showing on computer.

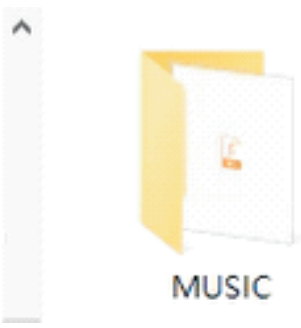

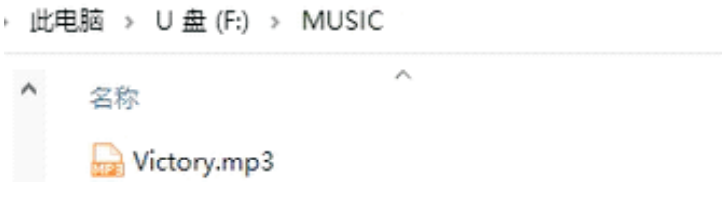

3. Double click U drive, check Music folder.


4. Double click Music file folder, copy audio file into Music file folder. (Supported audio file formats：mp3/wav/m4a/flac/aac)


5. Audio file copied to Music file folder successfully. Quick U drive from computer.

4.2 Firmware Upgrade

1. Use micro USB cable link up LP12 to computer USB.


2. After connection, U drive showing on computer.

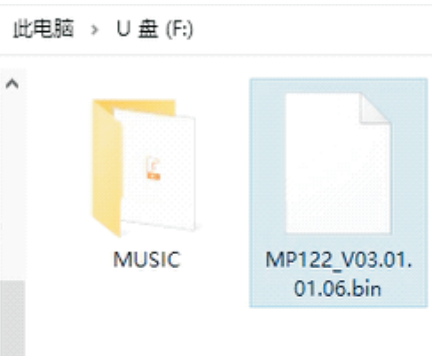

3. Double click U drive, copy firmware file into U drive.


4. Firmware copied, quit U drive.

5. Put power/communication cable of LP12 to connect M30 MSDK interface, turn on M30. LP12 firmware upgrade successfully.

\
Please log on to CZI's official website www.gzczzn.com for more LP12 updates and information. If LP12 not working, please contact us and CZI directly.
