How to update APACHE Firmware via Webpage
Prerequisites:
- Boat（GD100）with batteries
- 5GHZ antenna
- PC with WIFI
Note: the new firmware should be compatible with the new software that come with the released firmware.
Steps:
1. Power on the boat and install 5GHZ antenna on the boat.

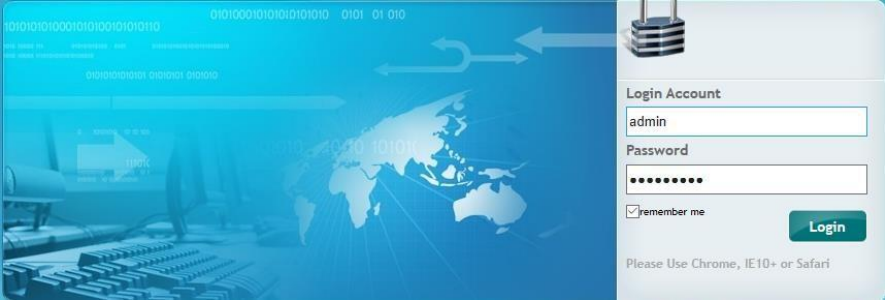

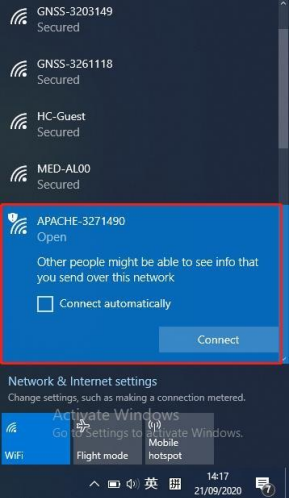

2. Connect the boat WIFI, logon the webpage: http://192.168.53.254/pc/login.html?v=4
Username: admin
Password: Admin1234

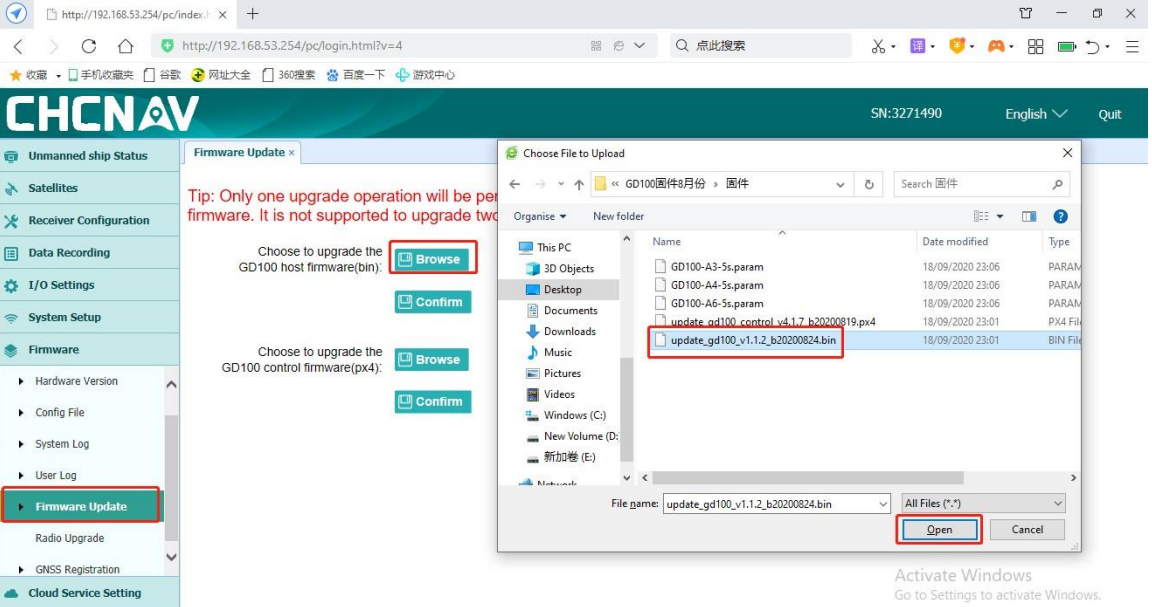

3. Click ‘Firmware’ ‘Firmware Update’ select the bin file to update GD100 host.

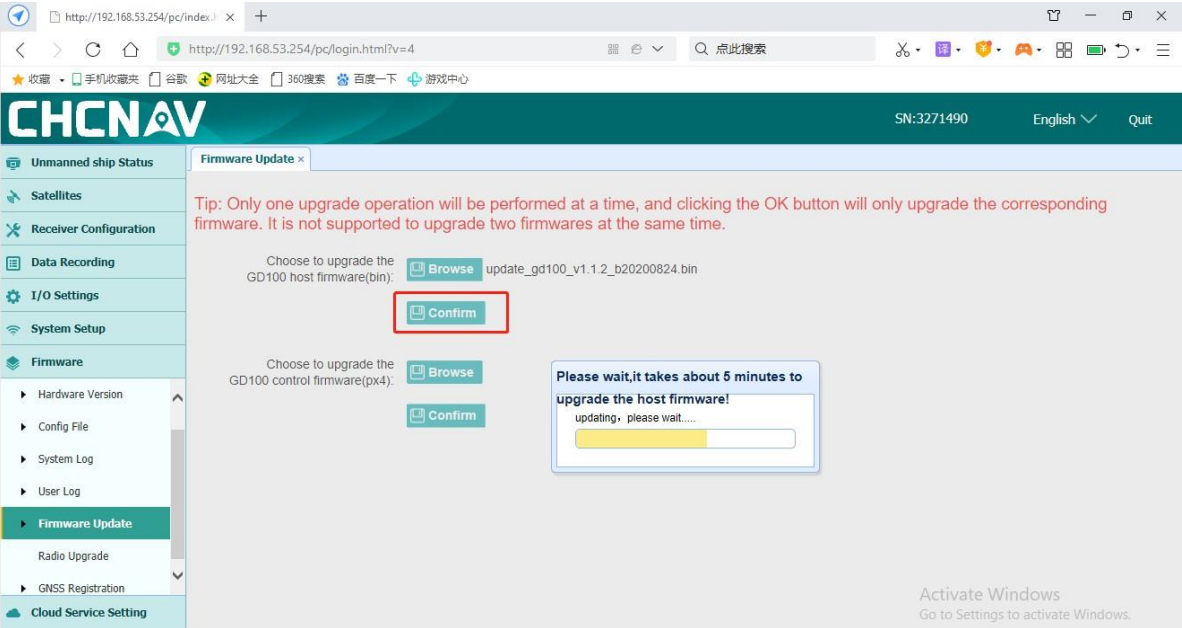

After click ’Confirm’ button , it is going to upload firmware to GD100 automatically. In the next few minutes,
you will hear a sound music and a long beep twice. After uploading interface disappeared, that mean update
firmware successfully.
4. Connect the boat WIFI again, logon the webpage: http://192.168.53.254/pc/login.html?v=4

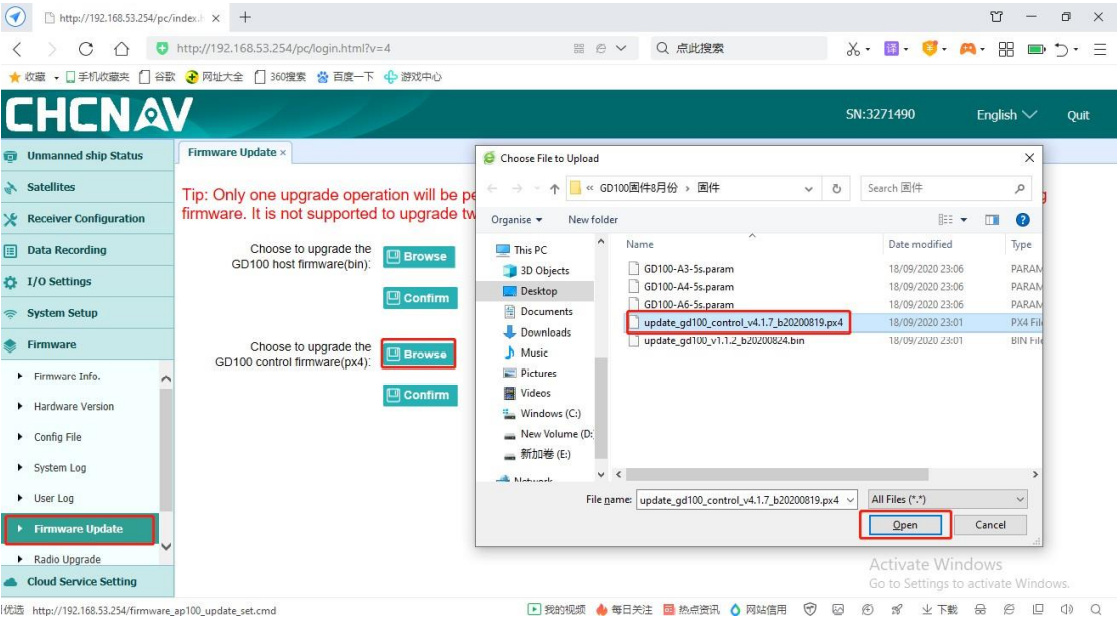

5. Click ‘Firmware’ ‘Firmware Update’ select the Px4 file to update control firmware(integrated receiver).

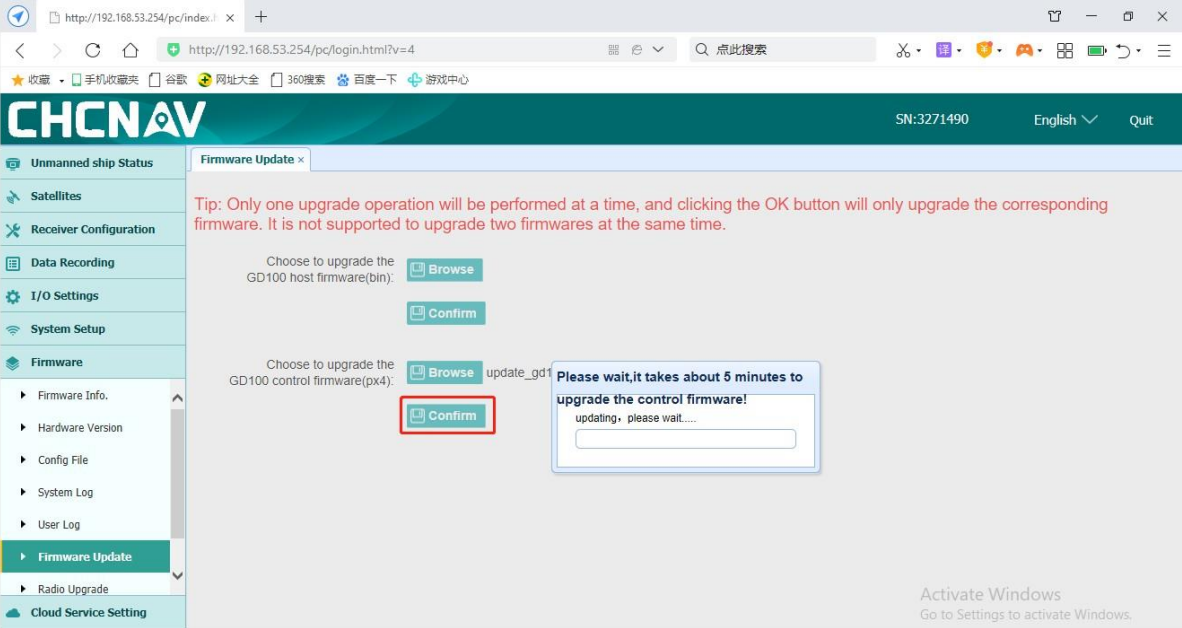

After click ’Confirm’ button , it is going to upload firmware to receiver automatically. In the next few minutes,
you will hear a sound music and a long beep. After uploading interface disappeared, that mean update
firmware successfully.
6. Connect the boat to PC via the Wifi, logon the webpage :http://192.168.53.254/pc/login.html?v=4

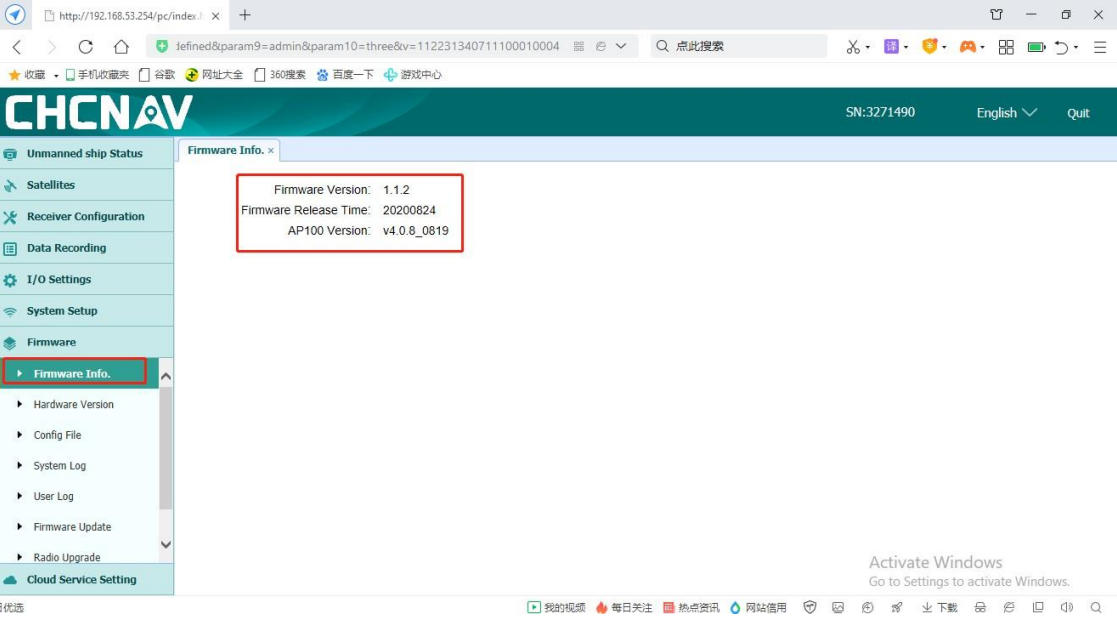

7. Go to ‘Firmware’ ‘Firmware Information’ ,check the version of the firmware.
8. Connect the boat to PC via the Wifi

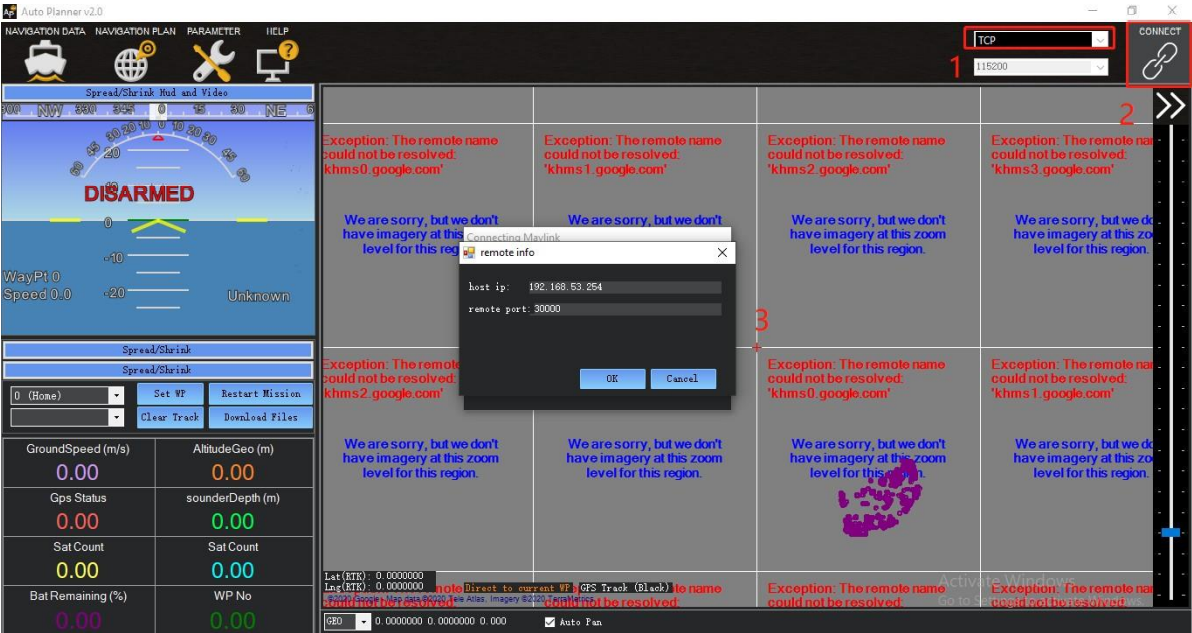

9. Connect the boat to Autoplanner via TCP mode.

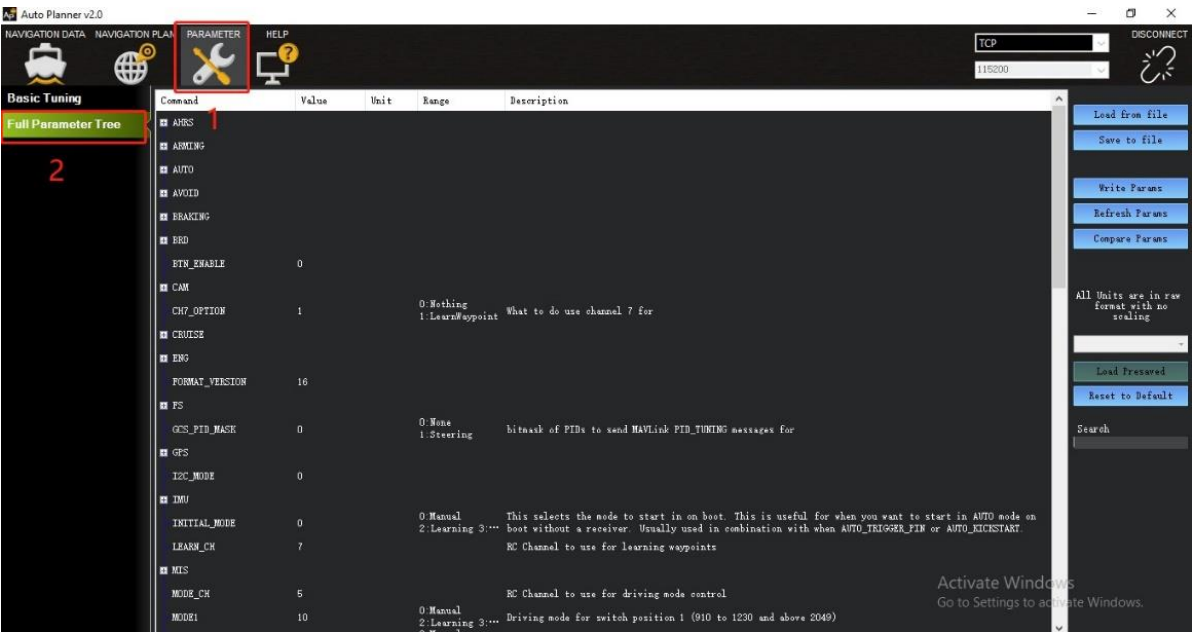

10. Go to parameter interface

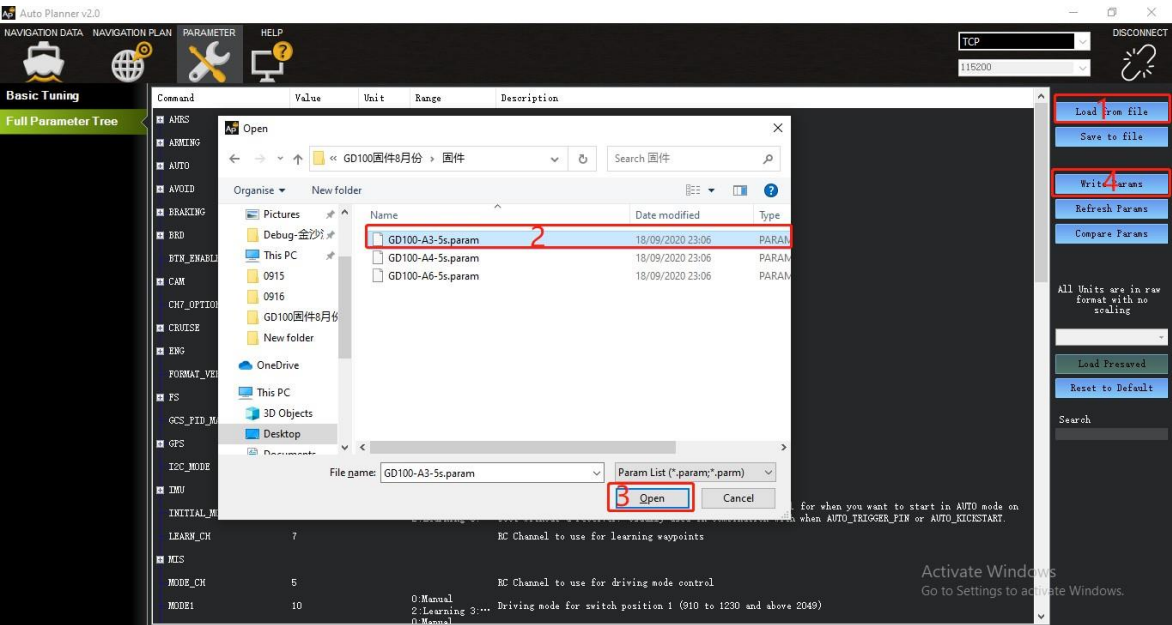

11. Write new parameters to the boat.
