QBase License Update

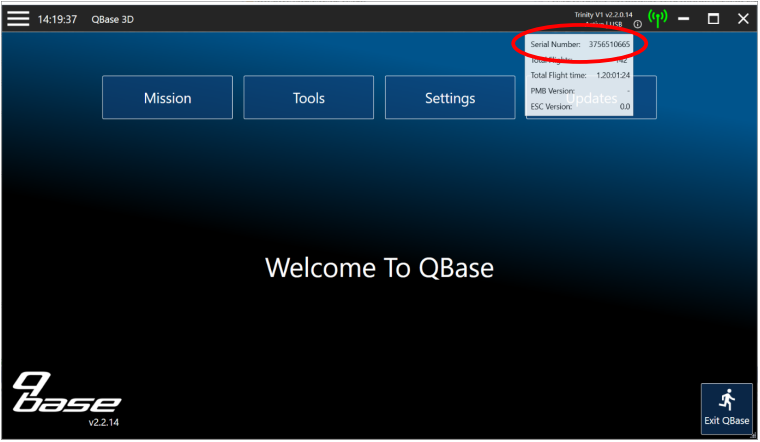

1. Find out your autopilots serial number

2. Request license via email from Quantum-Systems

Provide:

      • Aircraft type

      • Aircraft serial number

      • Autopilot serial number

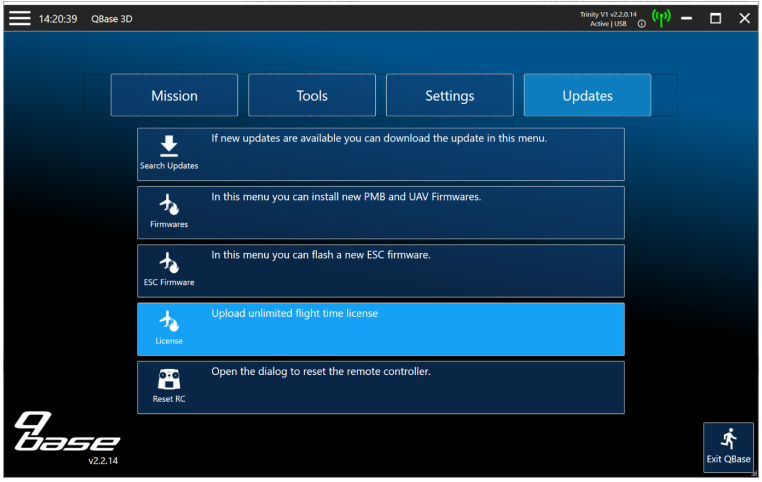

3. Go to license flashing dialog in Updates menu

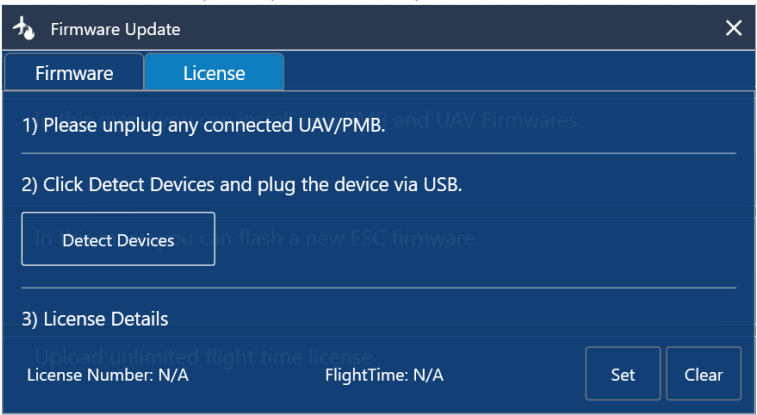

4. Follow license update process as depicted

5. When aircraft appears, select license file (*.lic)

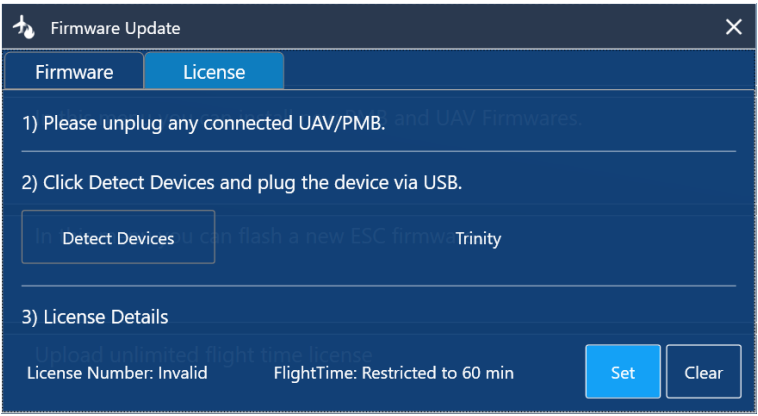

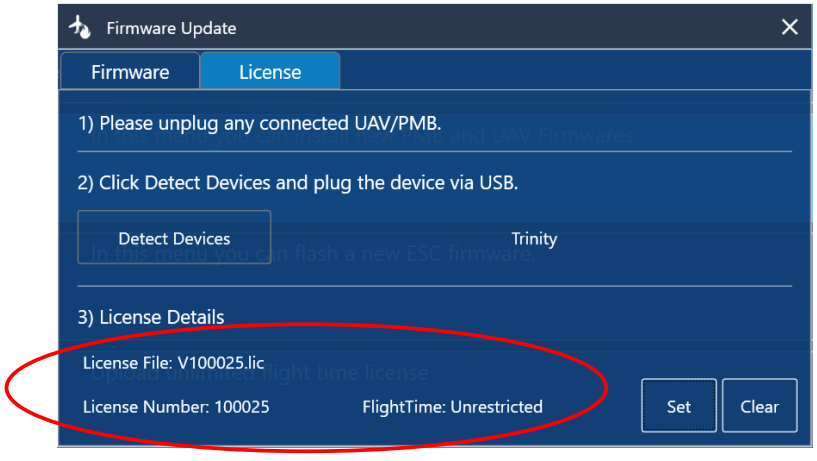

6. Check if license was applied
